The Aerolight Xtra is a folding ramp is an extremely cost-effective option. It is available in multiple lengths and is a result of years of ramp manufacturing expertise. Quick and easy to deploy, the Xtra is an all-round winner in real life situations.
Since its introduction in 2003, the original style has seen many improvements. All sizes are 76cm (30inches) wide.
This ramp is a great lightweight portable solution for thresholds, kerbs and steps, well-suited to public access, simple to deploy, weather-resistant, anti-slip, and folds and locks by the handles.
All product images are for illustrative purposes only. Actual product may vary due to product enhancement.
Finding The Correct Gradient
| 1:6 (10˚) | Acceptable in some cases for assisted access and powered wheelchairs | |
| 1:8 (8˚) | A good balance between gradient and space use, suited for events etc. | |
| 1:12 (5˚) | Often required by social services/local authorities. Minimum required Building Regs Doc M for installed ramps. | |
| 1:15 (4˚) | Sometimes required by social services/local authorities for independent access. |
Finding The Correct Length
| Step height / level difference (up to) | Length at 1:6 | Length at 1:8 | Length at 1:12 |
|---|---|---|---|
| 10cm (4") | 60cm (2ft) | 80cm (2ft 8") | 120cm (4ft) |
| 15cm (6") | 90cm (3ft) | 120cm (4ft) | 180cm (6ft) |
| 20cm (8") | 120cm (4ft) | 160cm (5ft 4") | 240cm (8ft) |
| 25cm ( 10") | 150cm (5ft) | 200cm (6ft 8") | 300cm (10ft) |
| 30cm (1ft) | 180cm (6ft) | 240cm (8ft) | 360cm (12ft) |
| 45cm (1ft 6") | 270cm (9ft) | 360cm (12ft) | 540cm (18ft) |
| 60cm (2ft) | 360cm (12ft) | 480cm (16ft) | 720cm (24ft) |
Aerospace honeycomb aluminium technology ensures incredible strength, and light weight.

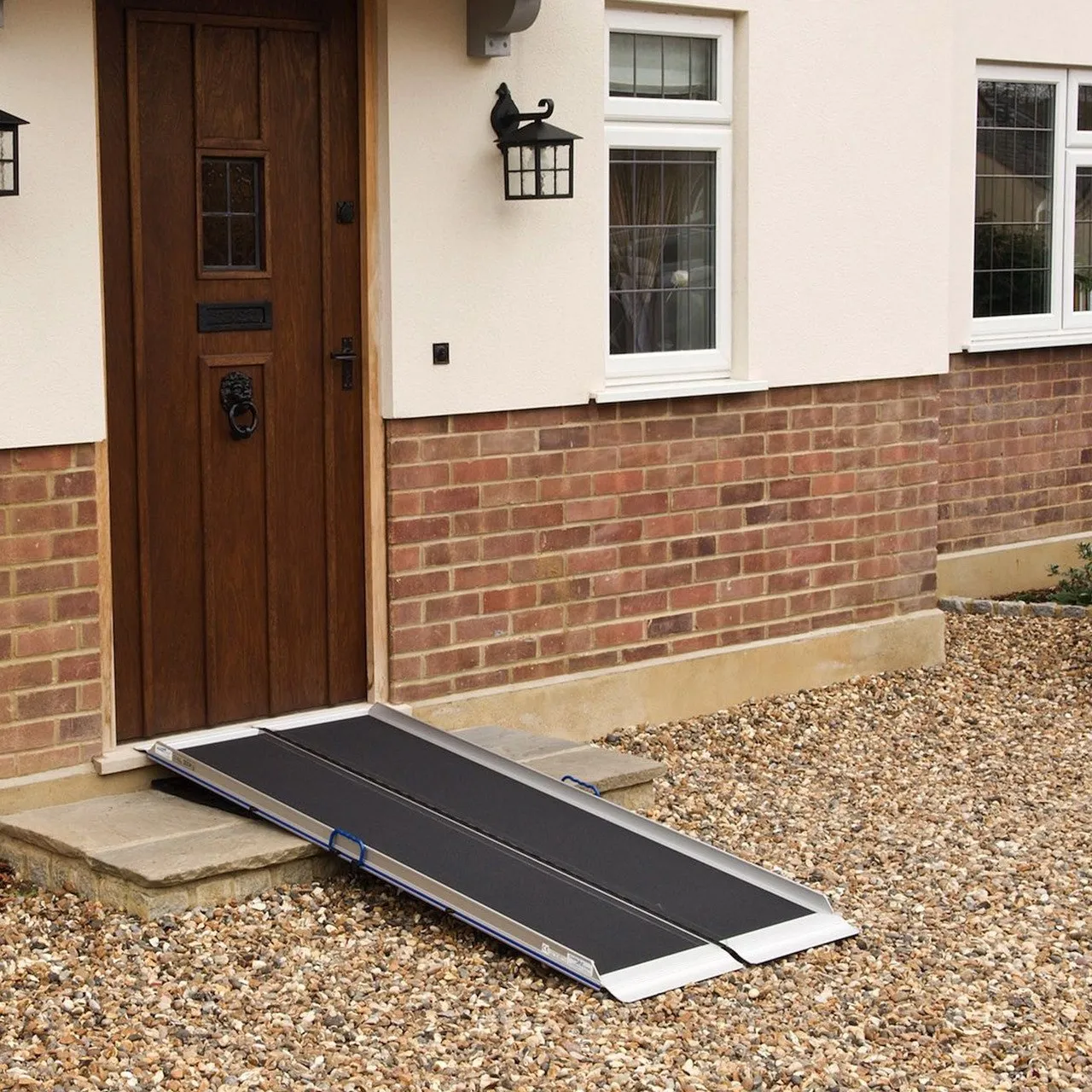

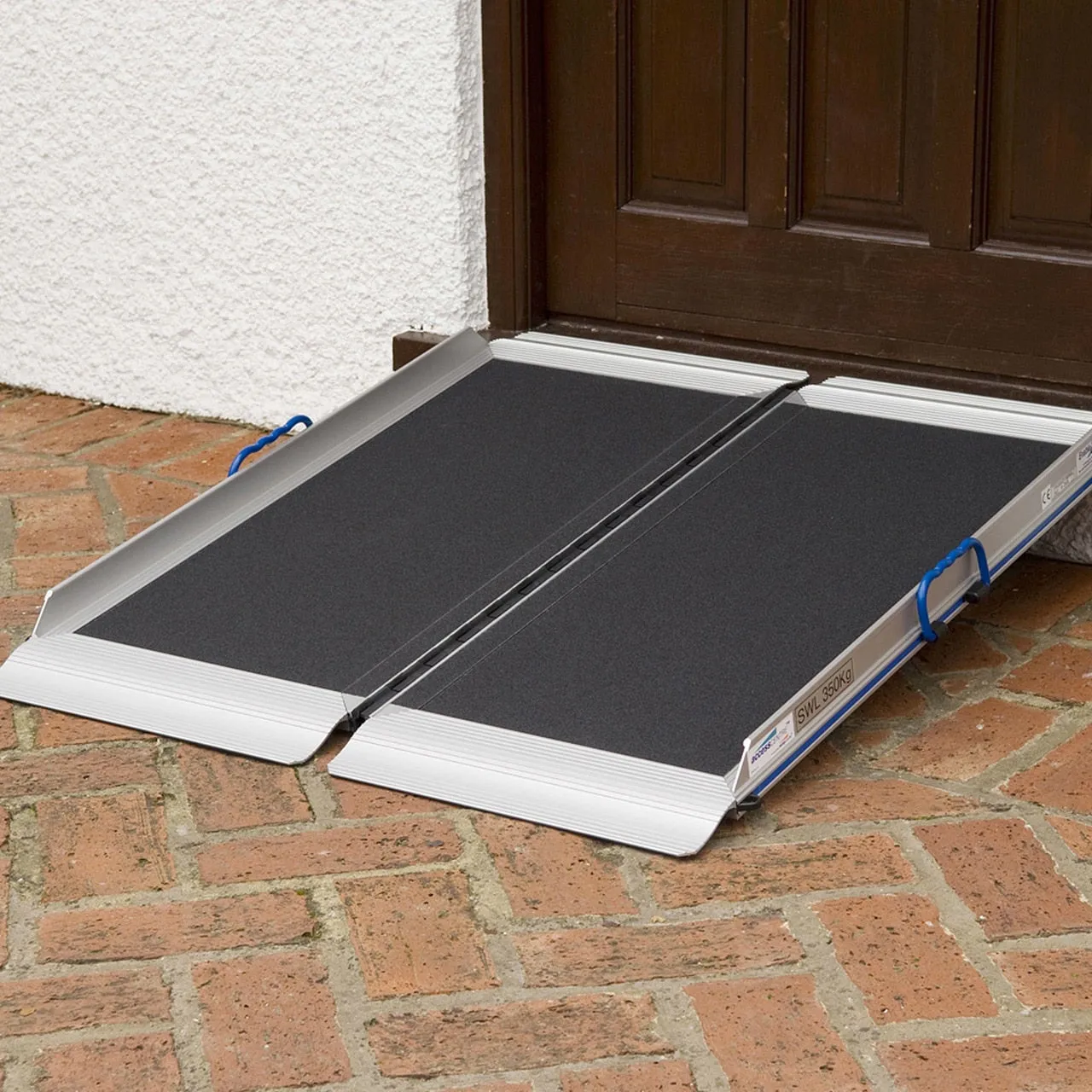

A great lightweight portable solution for thresholds, kerbs and steps.
Well-suited to public access.
Simple to deploy.
Weather-resistant.

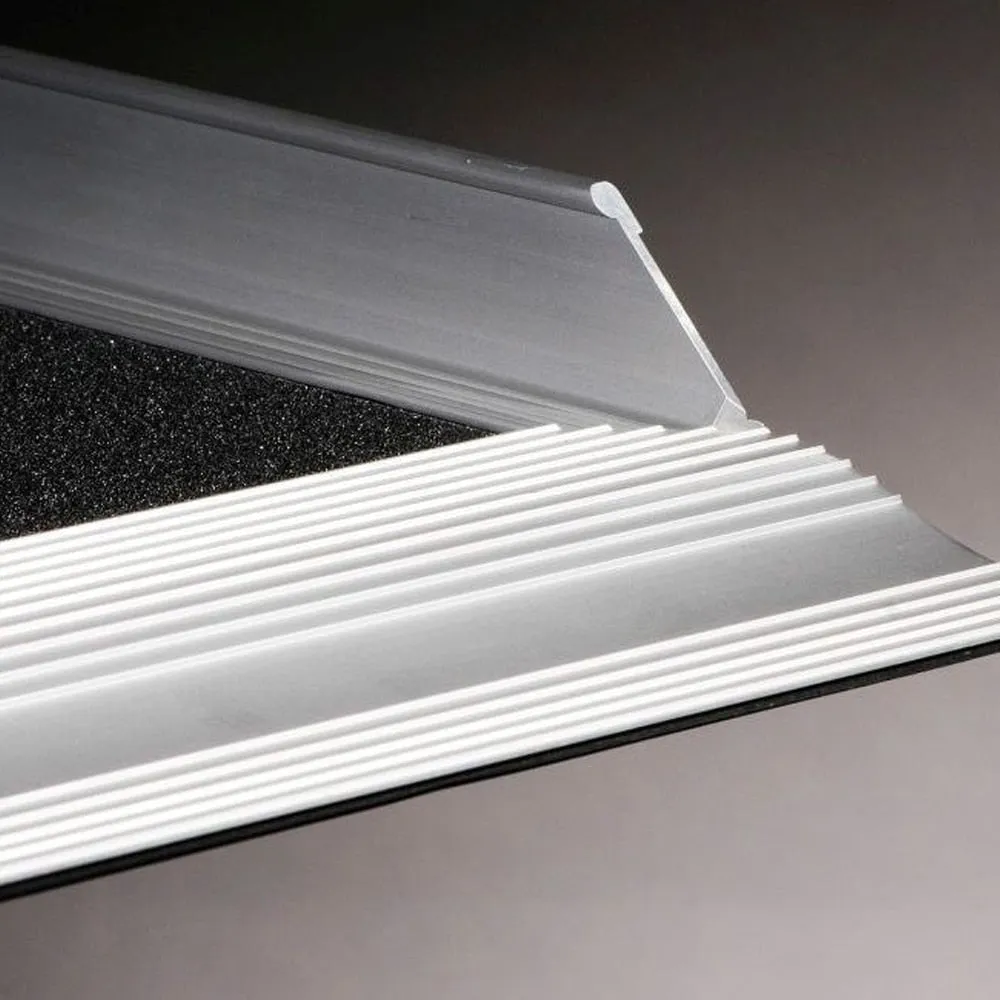

Anti-slip, sandpaper-like premium black grip surface
Aerolight Xtra Sizes
| Code | Length | Width* | Capacity kg (st) | Weight kg (lbs) |
|---|---|---|---|---|
| AX6 | 60cm (2ft) | 76cm (30ins) | 350 (55) | 5 (11) |
| AX9 | 90cm (3ft) | 76cm (30ins) | 350 (55) | 7 (15) |
| AX12 | 120cm (4ft) | 76cm (30ins) | 350 (55) | 9 (20) |
| AX15 | 150cm (5ft) | 76cm (30ins) | 350 (55) | 11 (24) |
| AX18 | 180cm (6ft) | 76cm (30ins) | 350 (55) | 13 (29) |
| AX21 | 210cm (7ft) | 76cm (30ins) | 300 (47) | 15 (33) |
| AX24 | 240cm (8ft) | 76cm (30ins) | 250 (55) | 17 (37) |
