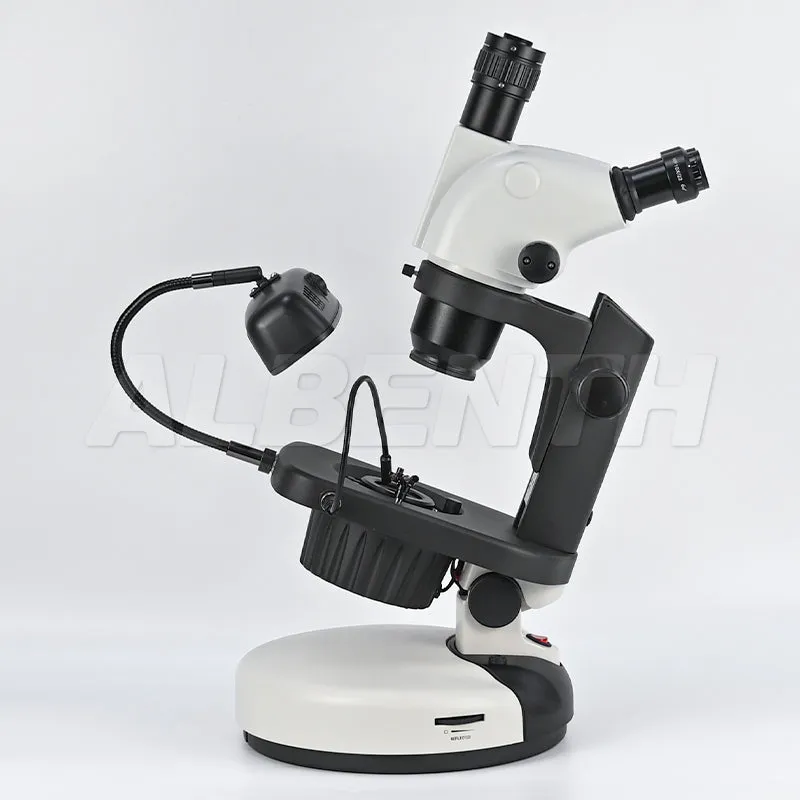

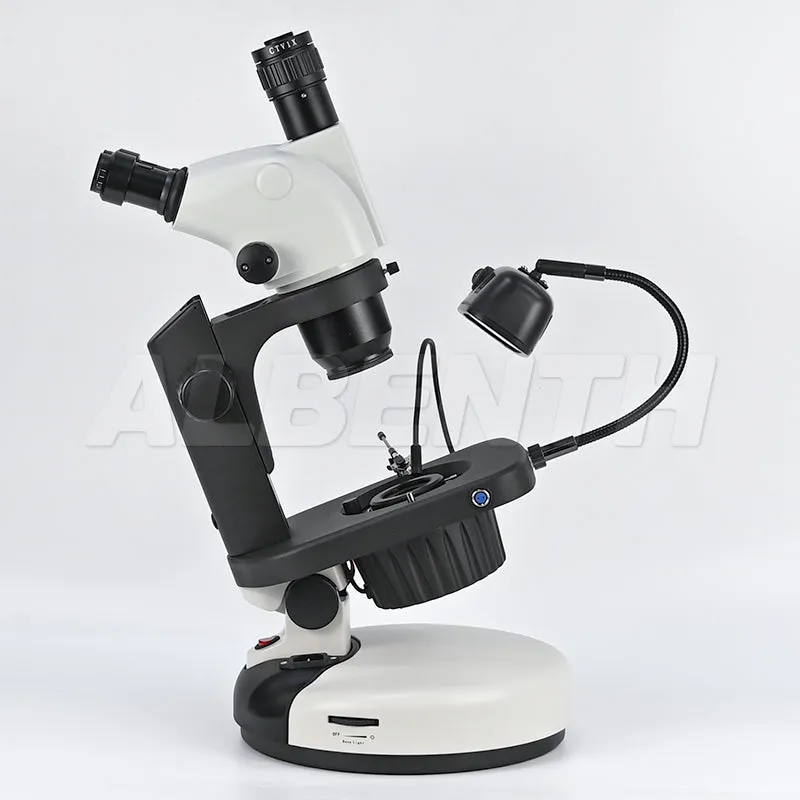

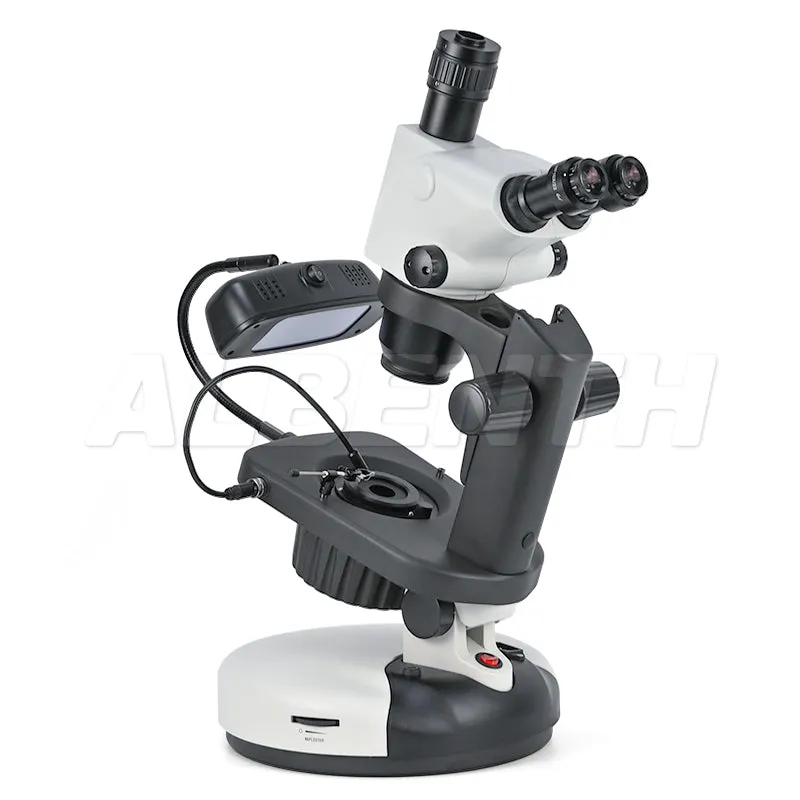

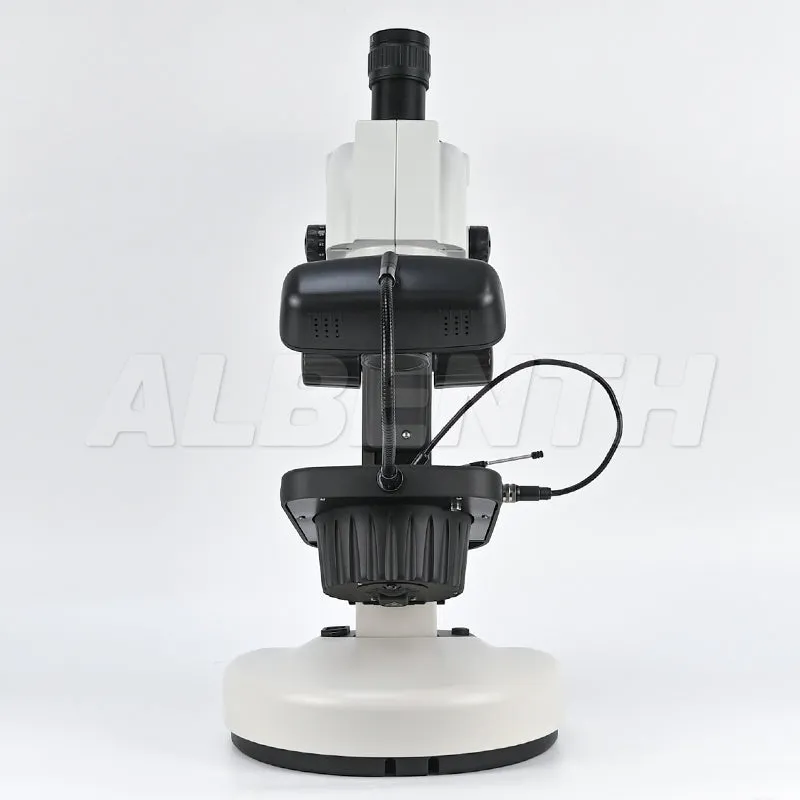

The RXT626-VG1 is a professional high-quality jewelry microscope for jewelers.
It can examine stones, inspect jewelry for repairs, assist in appraisals and make imaging inventory fast and easy.
It offers professional performance with its 10:1 zoom ratio and 0.65X-6.5X magnification range. 45° inclined trinocular head, adjustable interpupillary distance, diopter adjustment and adjustable focus.
An included quality steel clamp allows for all directions of observation of gems.

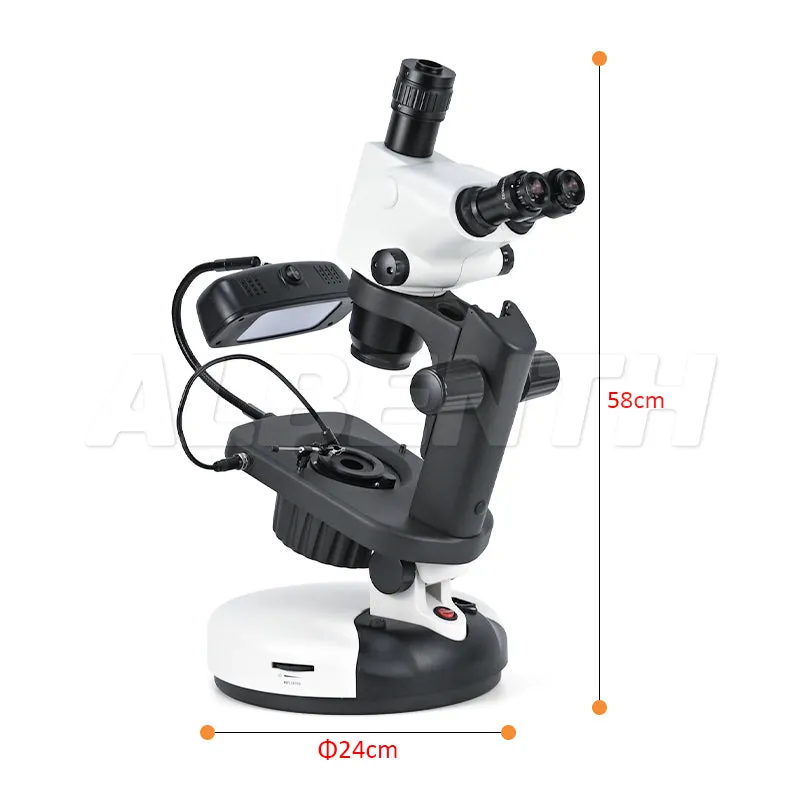

The white microscope body has a holder that measures φ76mm, a focus travel of 115mm, and an adjustable stand angle of 0-38°.
Features such as adjustable abbe condenser and adjustable diopters make it possible to observe gems with high precision.
This model is lightweight and compact, designed for portability and convenience.

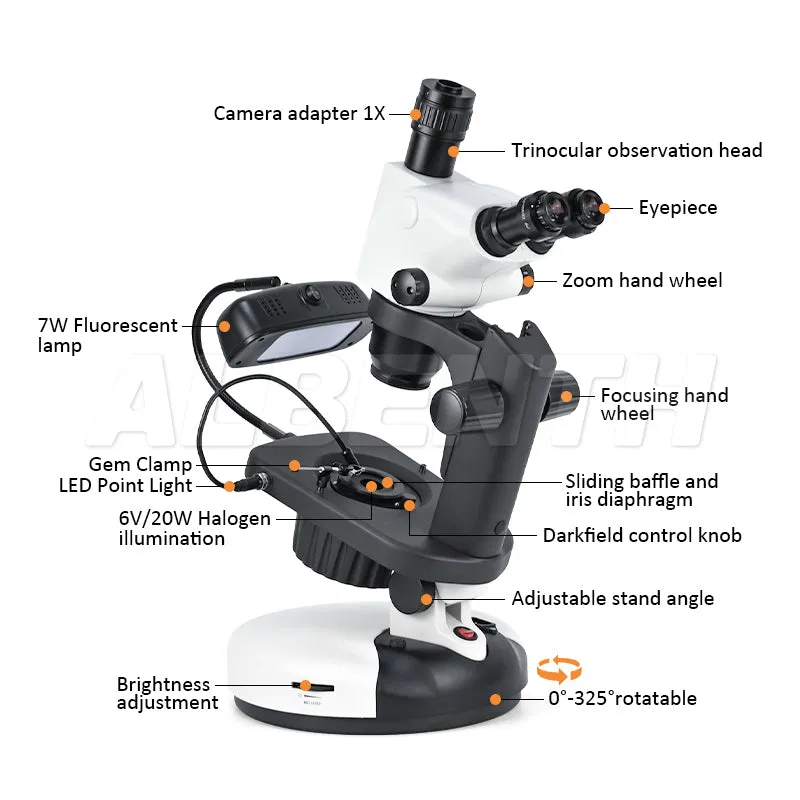

● 45° inclined trinocular head, adjustable interpupillary distance, diopter adjustment and adjustable focus.
● 10:1 zoom ratio and 6.5X-65X magnification range.
● The microscope body has a holder that measures φ76mm, a focus travel of 115mm, a adjustable stand angle of 0-38°, and an 0-325° base rotatable.

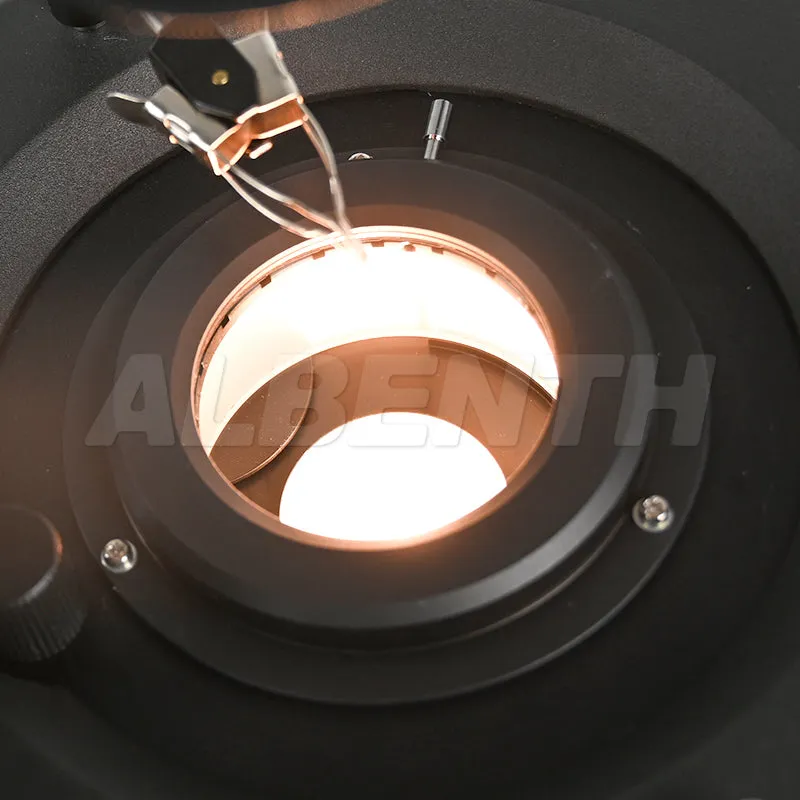

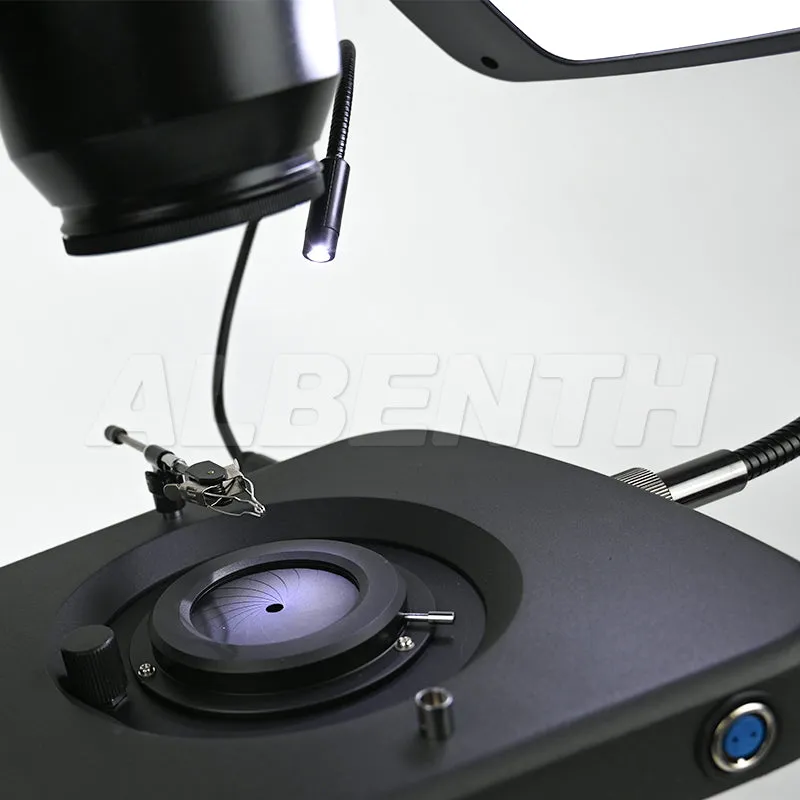

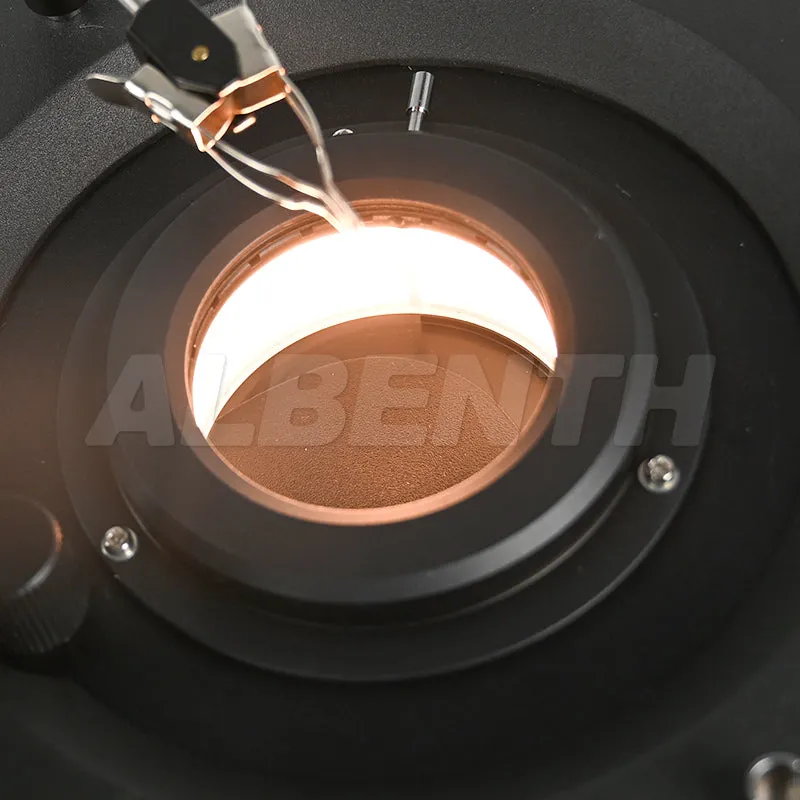

● Large rotatable round stage with 7W gooseneck rectangular fluorescent lamp, 6V/20W darkfield halogen light, built-in darkfield condenser with iris, 3D gem clamp and graduations.
● An included quality steel clamp allows for all directions of observation of gems.
Specification:
● Viewing head: Trinocular viewing head, Inclined 45°. Interpupillary distance adjustment 54-76mm, Diopter adjustment /- 5.
● Eyepiece: WF10x/22mm focusable eyepieces, Eyeguards included
● Zoom objective: 0.65X-6.5X
● Zoom ratio: 10: 1
● Working distance: 110mm
● Head mounting size: 76mm in diameter
● C-Mount Adapter: 1X (Included)
● Dust cover: Yes (Included)
● Color: White or black
● Microscope body holder: φ76mm

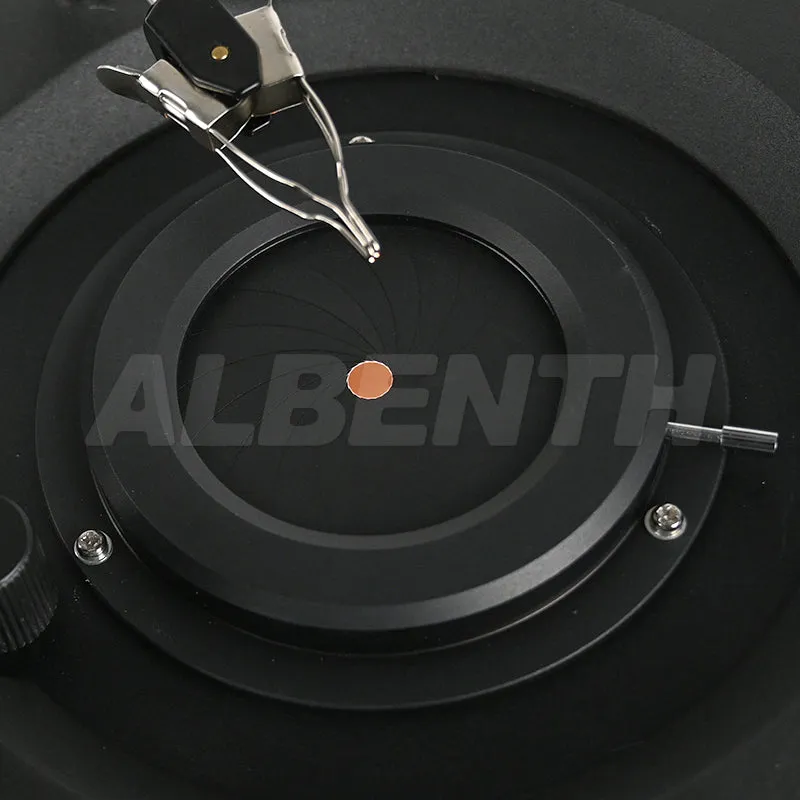

●Sliding baffle and iris diaphragm: 2mm-41mm
● 3pcs Illuminators:
- Overhead 7W Fluorescent lamp
- LED Point Light
- 6V/20W Halogen illumination
● Focus travel: 115mm
● Gem Clamp: Quality steel clamp to hold the gem for all direction observations of gems
● Stand angle tiltable adjustment: 0-38°
● Base rotatable: 0°-325°

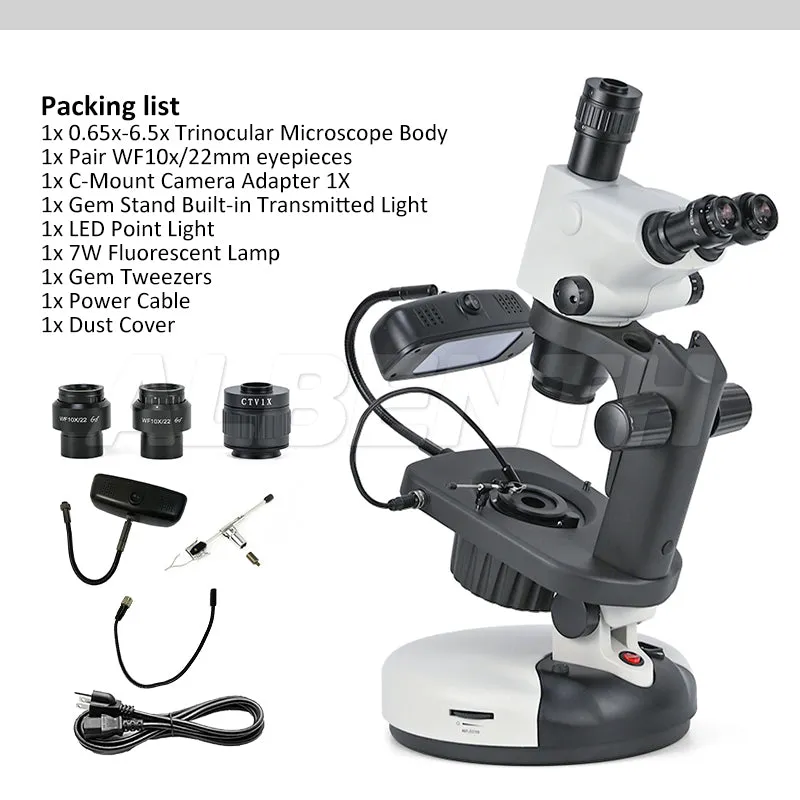

Packing List:
1x 0.65X-6.5X Trinocular Microscope Body
1x Pair WF10X/22mm eyepieces
1x C-Mount Camera Adapter 1X
1x Gem Stand Built-in Transmitted Light
1x LED Point Light
1x 7W Fluorescent Lamp
1x Gem Tweezers
1x Power Cable
1x Dust Cover
