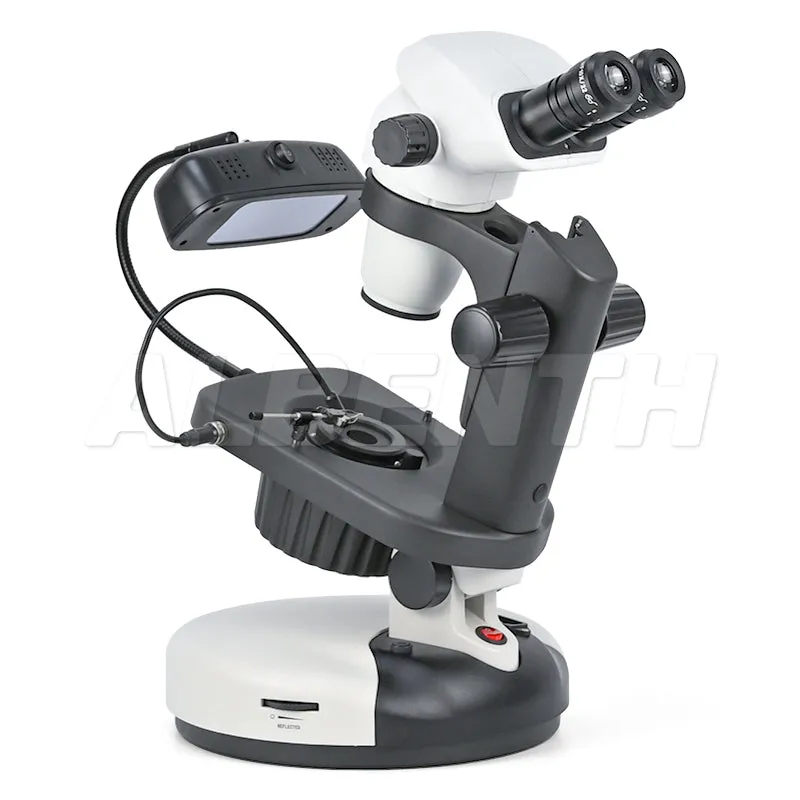

The RX316-VG1 achieves best sharp images results by combining ergonomy and a high end Greenough optical system.
As a jewelry inspection device it is ideal for goldsmith repairs, gemstone setting or silverware polishing of fine details.
It is mounted at eye height of the jeweler resulting in a healthy straight posture throughout the workday.
This innovative jeweler’s microscope offer a 45° inclined binocular head with interpupillary distance and diopter adjustment.
The jewelry stand is equipped with the overhead 7W fluorescent lamp, LED point light and 6V/20W Halogen illumination. Stand angle tiltable can be adjusted from 0 to 38°. The 0°-325°rotatable base allows the goldsmith to work precisely without space
constraint at the jeweler’s bench.
● A sophisticated jewel gem microscope for professionals
● 6.7X-45X super widefield stereo zoom magnification setting
● Offering crisp clear brightfield / darkfield microscopy images
● Flexible inclinable stand w/ a professional gemology stage

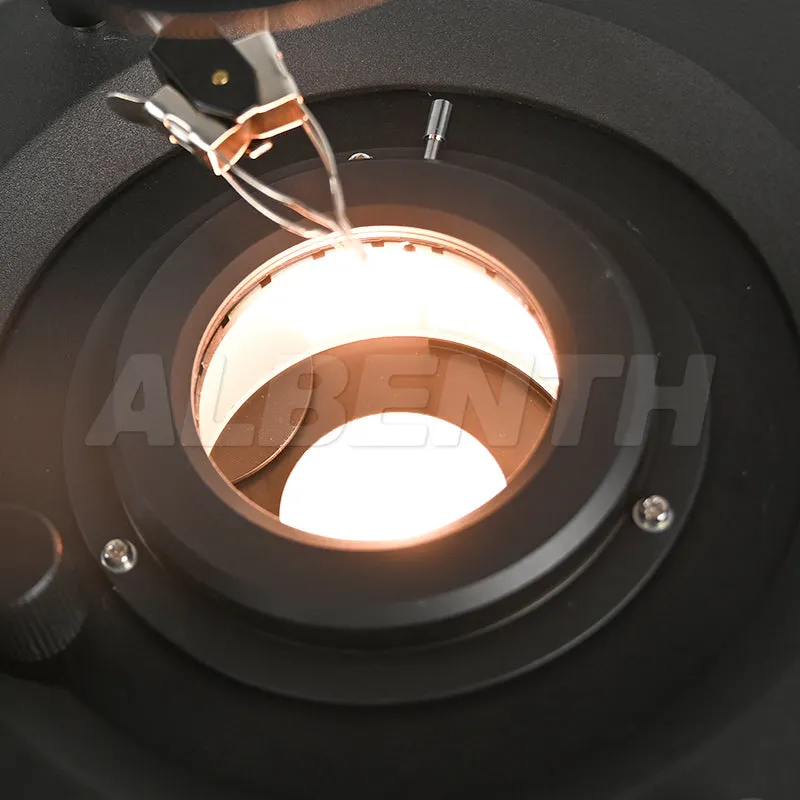

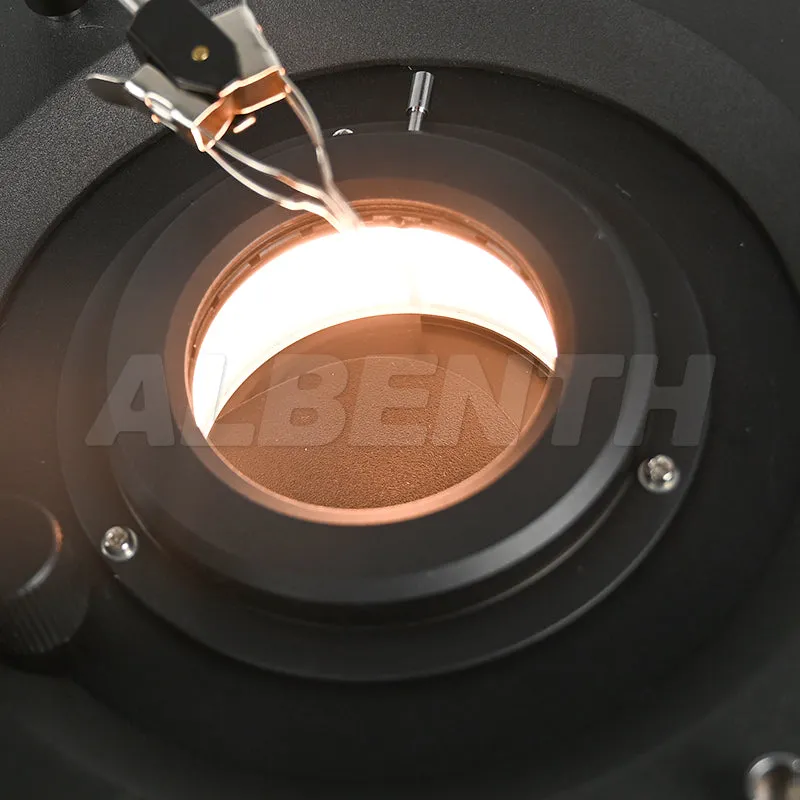

● Incident (top) and transmitted (bottom) illumination system

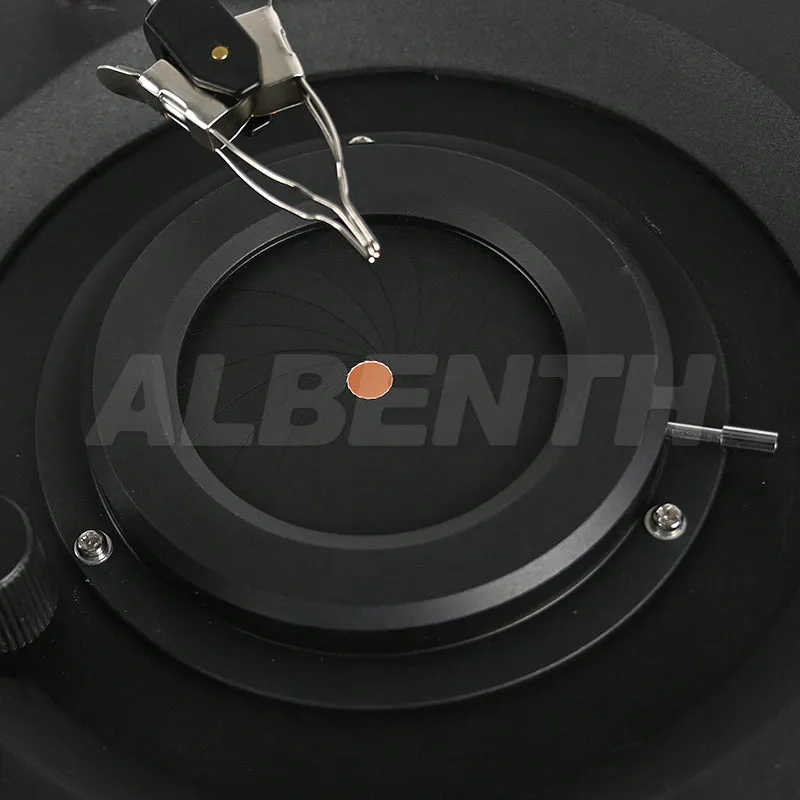

● Built-in darkfield w/ iris diaphragm

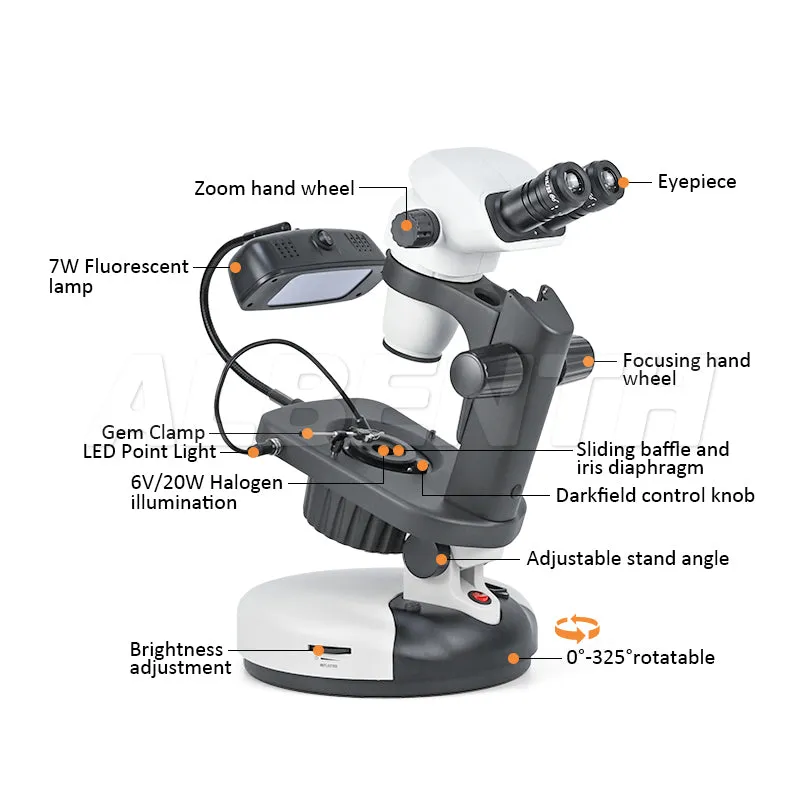

Specification:
● Optical system: Greenough
● Microscope body color: White
● Viewing head: Brinocular viewing head, Inclined 45°. Interpupillary distance adjustment 54-76mm, Diopter adjustment /- 5
● Eyepieces: WF10x/22mm focusable eyepieces, Eyeguards included
● Zoom objectives: 0.67x – 4.5x
● Zoom ratio: 6.7 : 1
● Working distance: 110mm
● Head mounting size: 76mm in diameter
● C-Mount Adapter: 1X (Included)
- Stand
● Microscope body holder: φ76mm
●Sliding baffle and iris diaphragm: 2mm-41mm
● 3pcs Illuminators:
- Overhead 7W Fluorescent lamp

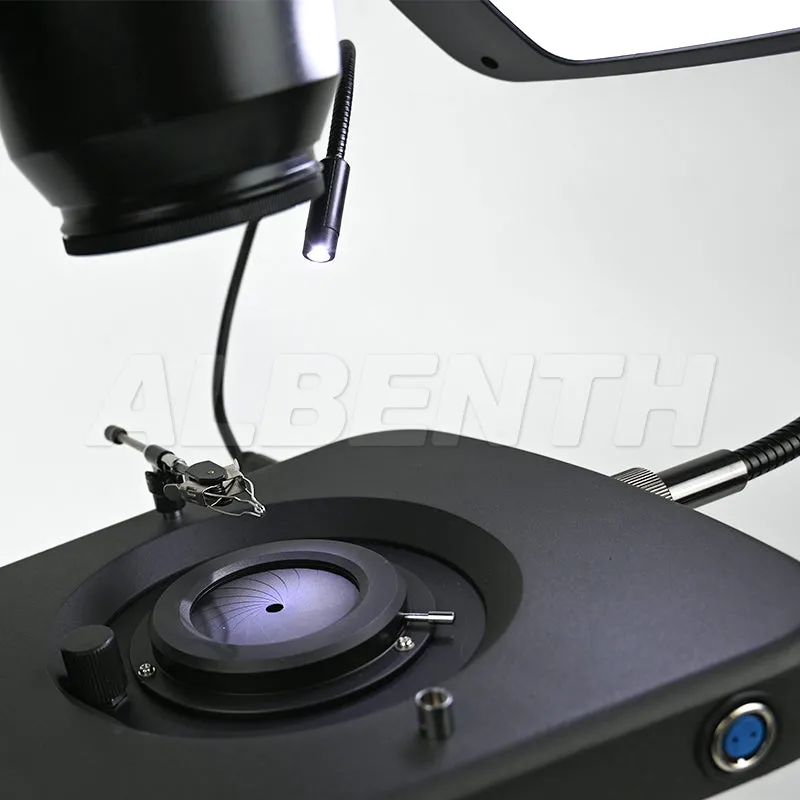

- LED Point Light
- 6V/20W Halogen illumination
● Focus travel: 115mm
● Gem Clamp: Quality steel clamp to hold the gem for all direction observations of gems
● Stand angle tiltable adjustment: 0-38°
● Base rotatable: 0°-325°

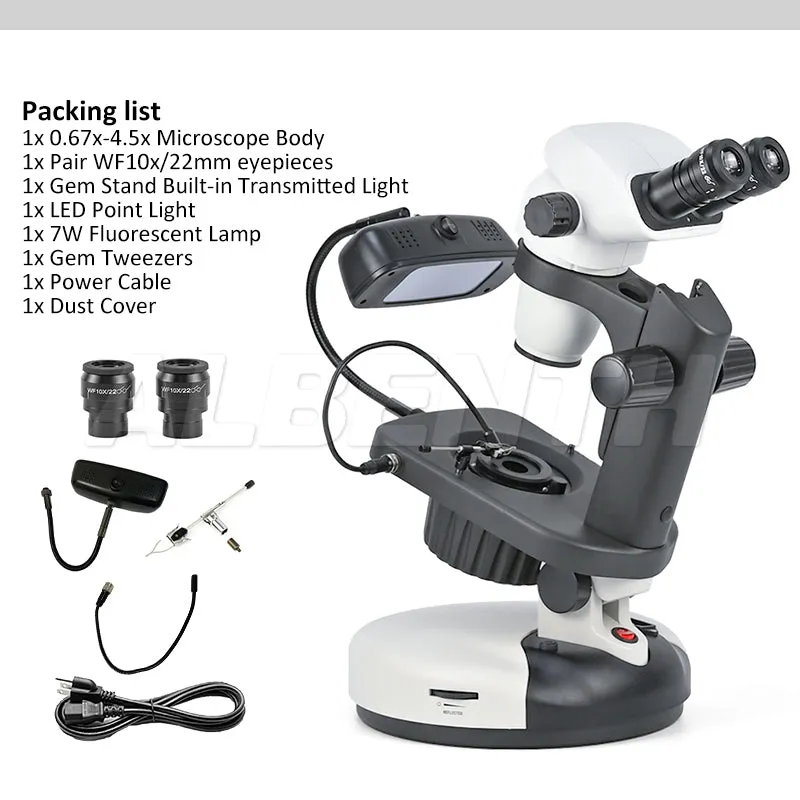

Packing List:
1x 0.67x-4.5x Binocular Microscope Body
1x Pair WF10x/22mm eyepieces
1x Gem Stand Built-in Transmitted Light
1x LED Point Light
1x 7W Fluorescent Lamp
1x Gem Tweezers
1x Power Cable
1x Dust Cover
