About this item
● 6.7X-45X extreme widefield continuous zoom magnification power
● Sharp clear stereo erect images over an extreme wide field view
● Extreme widefield high-eyepoint WF10X/22 eyepieces with eye-guards
● Mounting Size: 3" (76mm) in diameter
Product Description
● This is a 6.7X-45X zoom magnification trinocular parfocal microscope head with ultimate optical system, offering top-level sharp clear erect stereo images, highest magnification can arrive 180X
● The major benefit of a parfocal head is that once the head is adjusted to be 4" away from your sample's surface, you can use the entire magnification range without refocusing!

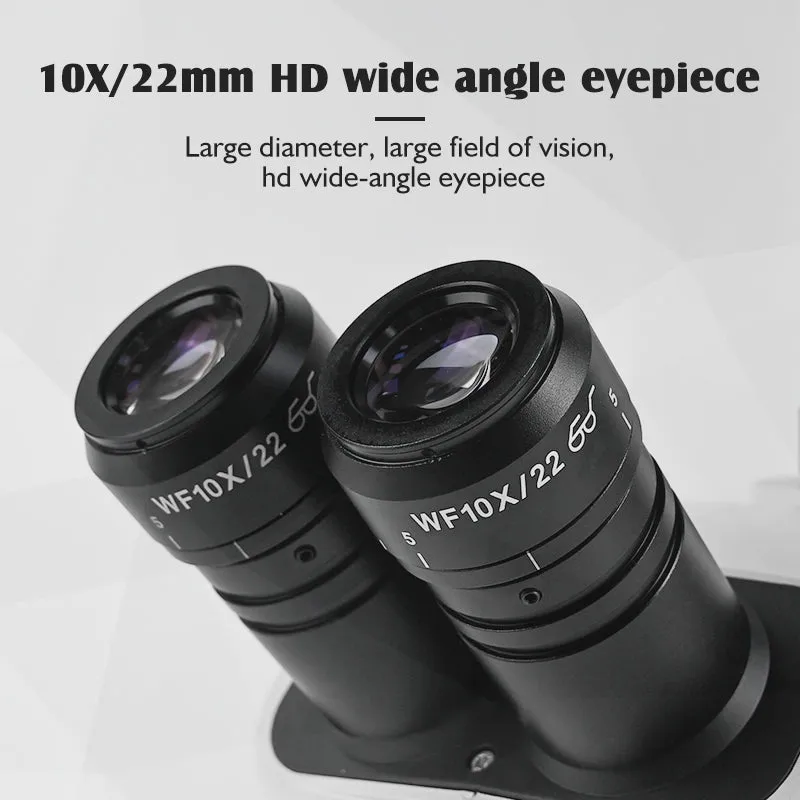

● It includes a pair of extreme widefield high-eyepoint WF10X/22 eyepieces with eyeguards.
● It comes with 45-degree inclined 30mm eyetubes with diopter. The extreme widefield optics and high-eyepiont design ensure an easy and comfortable observation.
● This microscope head fits all the stands with a 3" (76mm in diameter) O-ring holder.
Features

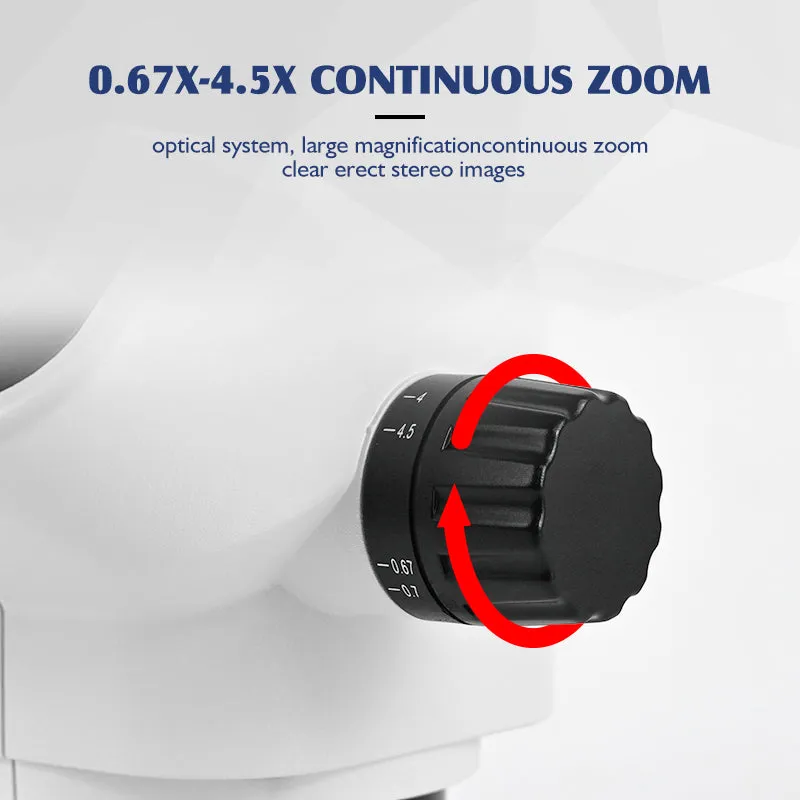

● Power objectives 0.67X-4.5X Continuous Zoom Magnification Offering Top-Level Quality Images & Parfocality
● 45-degree Inclined Trinocular Head with Extreme Widefield High-Eyepoint Eyepieces
● WF10X/22 Eyepieces
● High Resolution with Great Flatness and Contrast
● Sharp Stereo Erect Images over a Wide Field View
● Crystal Clear Original True Color Images
● Both Ocular-Tubes with Adjustable Diopter
● Large Working Distance (4" at any magnification level!)
● Accurate Alignment Ensuring a Fatigue-Free Viewing
● Full Optical Glass Elements
● Precise Ground Glass Lens
● All Metal Mechanical Components
● Adjustable Interpupillary Distance
● Rubber Eyeguards Included
Specifications
● Optical system: Greenough.
● Viewing head: Trinocular viewing head, Inclined 45°. Interpupillary distance adjustment 54-76mm, Diopter adjustment /- 5.
● Eyepieces: WF10x/22mm focusable eyepieces, Eyeguards included
● Zoom objectives: 0.67x – 4.5x.
● Zoom ratio: 6.7: 1
● Working distance: 110mm
● Head mounting size: 76mm in diameter
● C-Mount Adapter: 1X (Included)
● Dust cover: Yes (Included)
Packing list:
1x Trinocular Stereo Zoom body
1x Pair of 10X Eyepieces
1x C-Mount adapter 1X
1x Pair Eye-Guards
