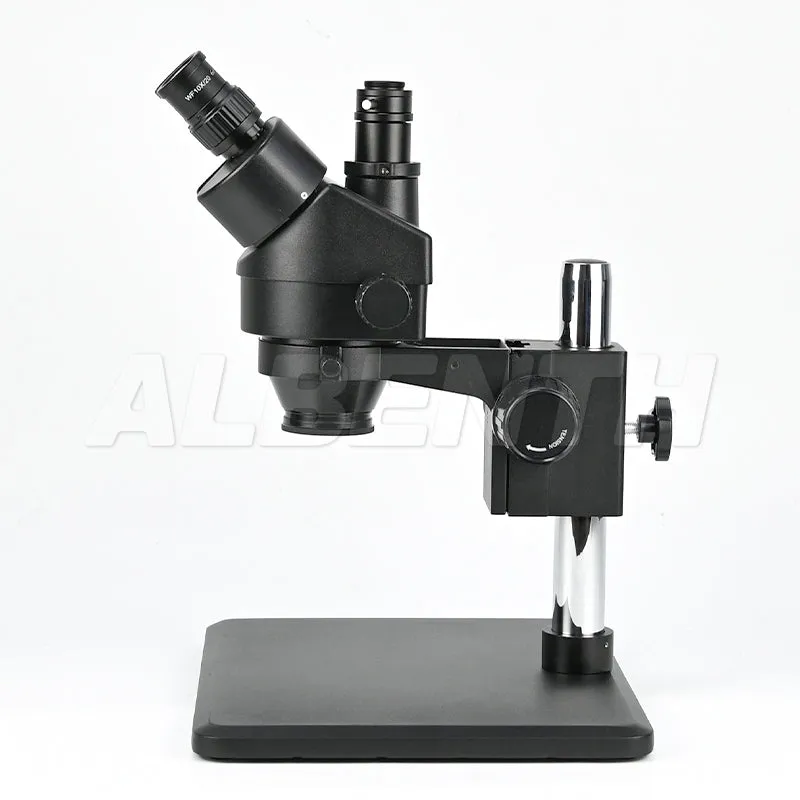

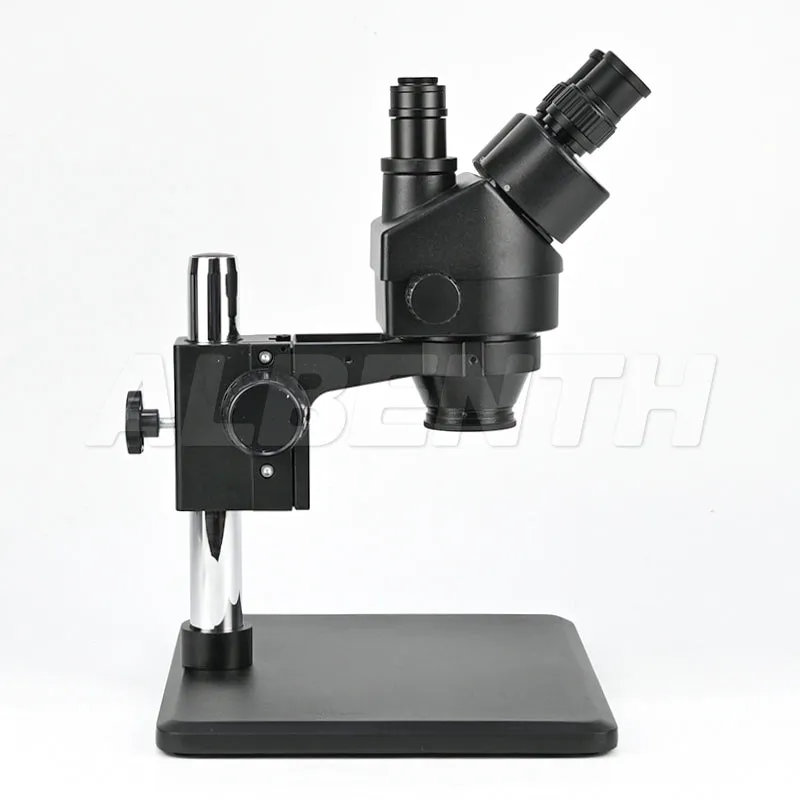

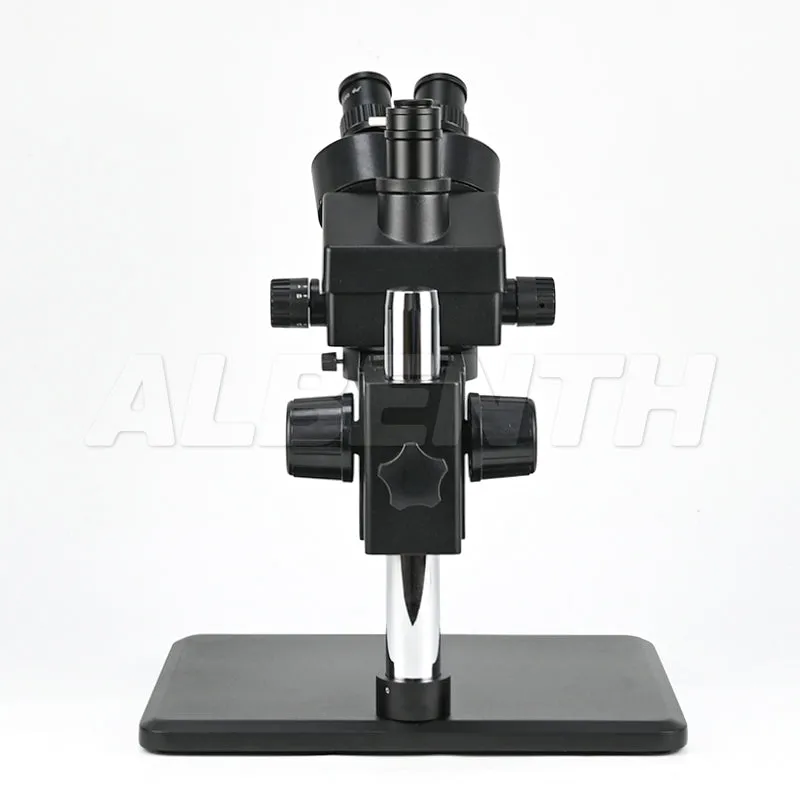

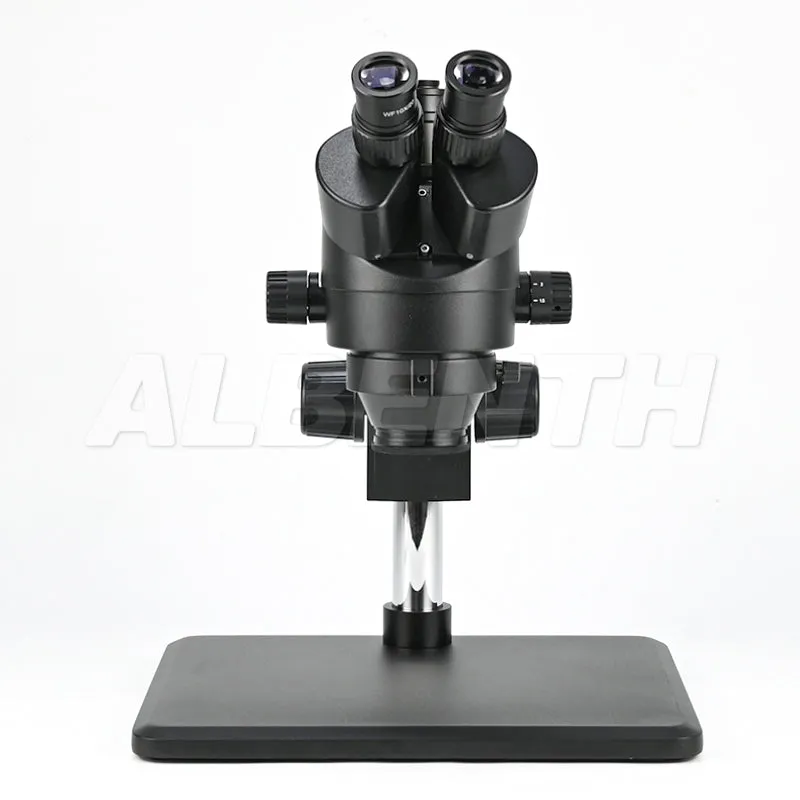

● Viewing head: Trinocular head, Inclined 45°. Interpupillary distance adjustment 54-76mm, Diopter adjustment /- 5.
● Eyepiece: WF10X/20mm
● Zoom Objective: 0.7X-4.5X
● Zoom Ratio: 6.5:1
● Zoom Range: 0.7X-4.5X (without lens)-0.35X-2.25X (with 0.5X lens)
● Total Magnification: 7X-45X (with 10X eyepieces)-3.5X-22.5X (with 10X eyepieces & 0.5X lens)
● Field of View: 28mm-4.3mm (without lens)-52.1mm-8.4mm (with 0.5X lens)
● Working distance: 100mm (without lens)-165mm (with 0.5X lens)
● Head Mounting Size: 76mm in diameter
● C-Mount Adapter: 1X (Included)
● Dust cover: Yes (Included)
● Vertical post height: 240mm
● Vertical post diameter: φ32mm
● Microscope body holder: φ50mm
● Focus travel: 50mm
● Base size: 320x260x16mm
Packing list:
1x 0.7-4.5X black trinocular microscope head
1x Pair WF10X/20mm eyepieces
1x C-mount camera adapter 1X

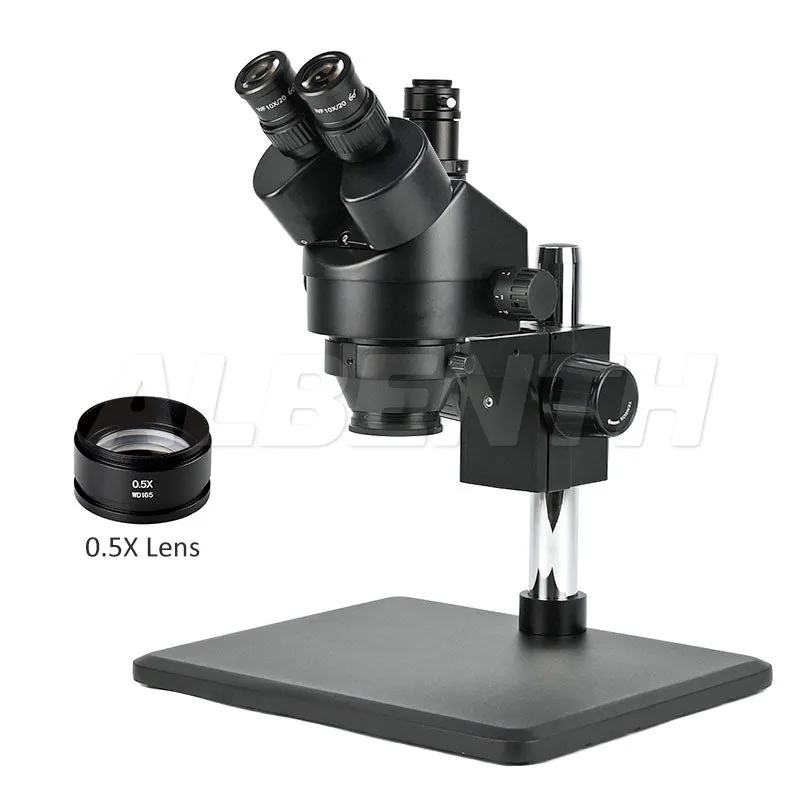

1x Auxiliary Lens 0.5X
1x Stand base
1x Stand pillar
1x Focusing block
