DESCRIPTION

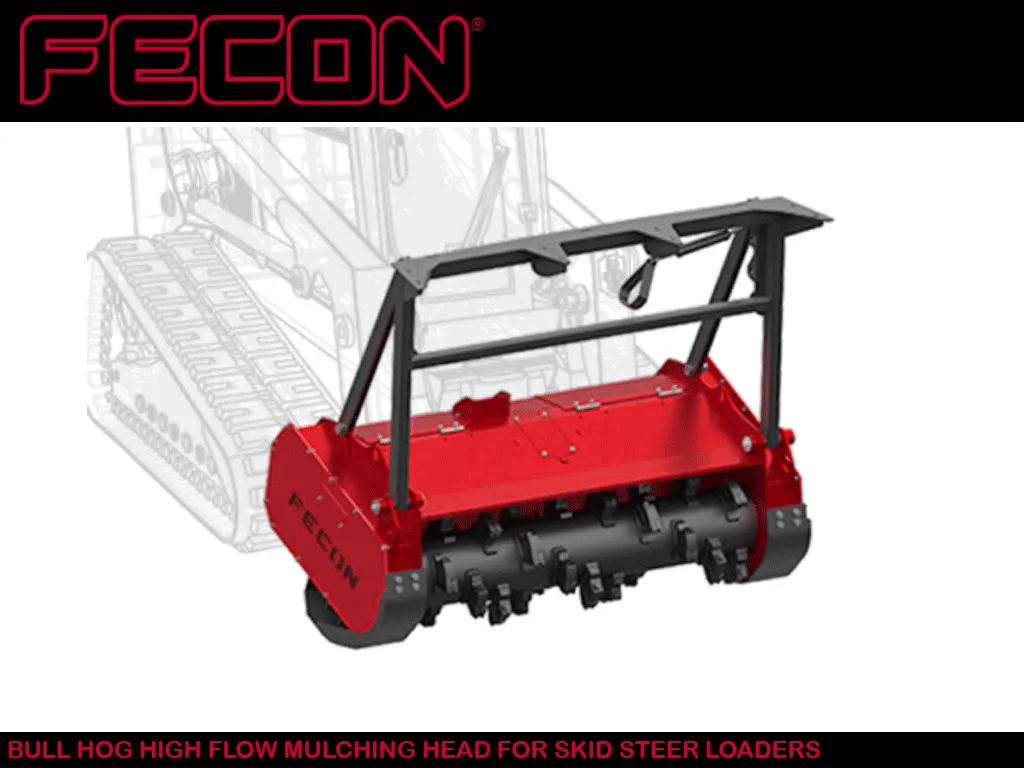

BULLHOG
HIGH FLOW
SKID STEER MULCHING ATTACHMENT

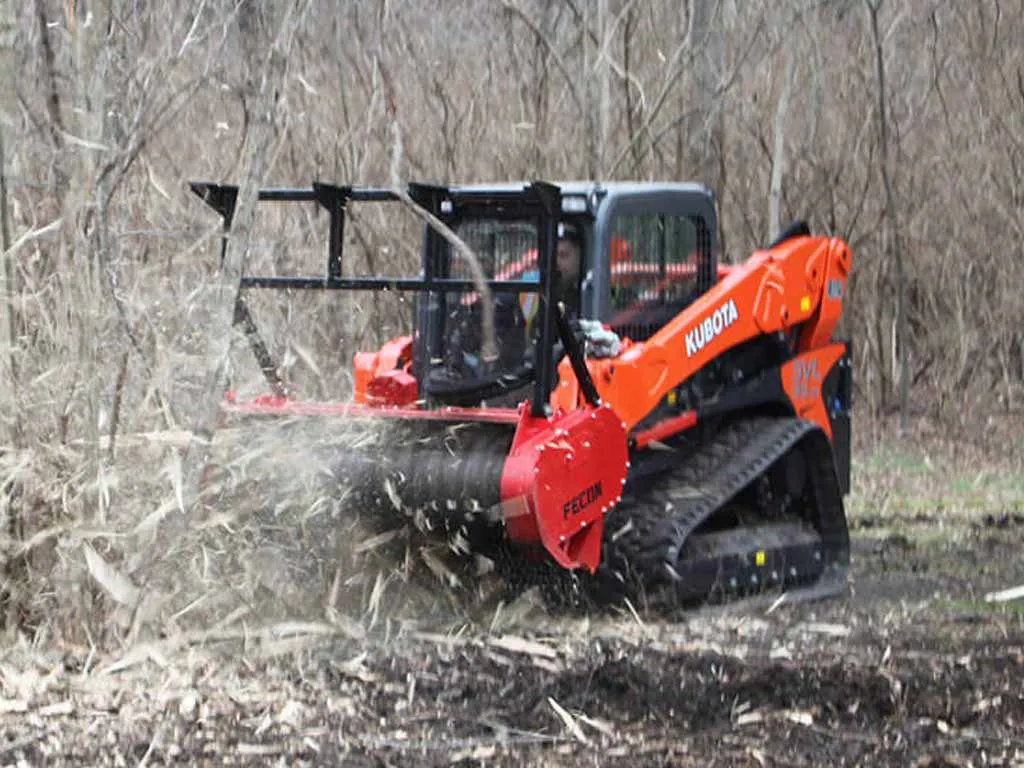

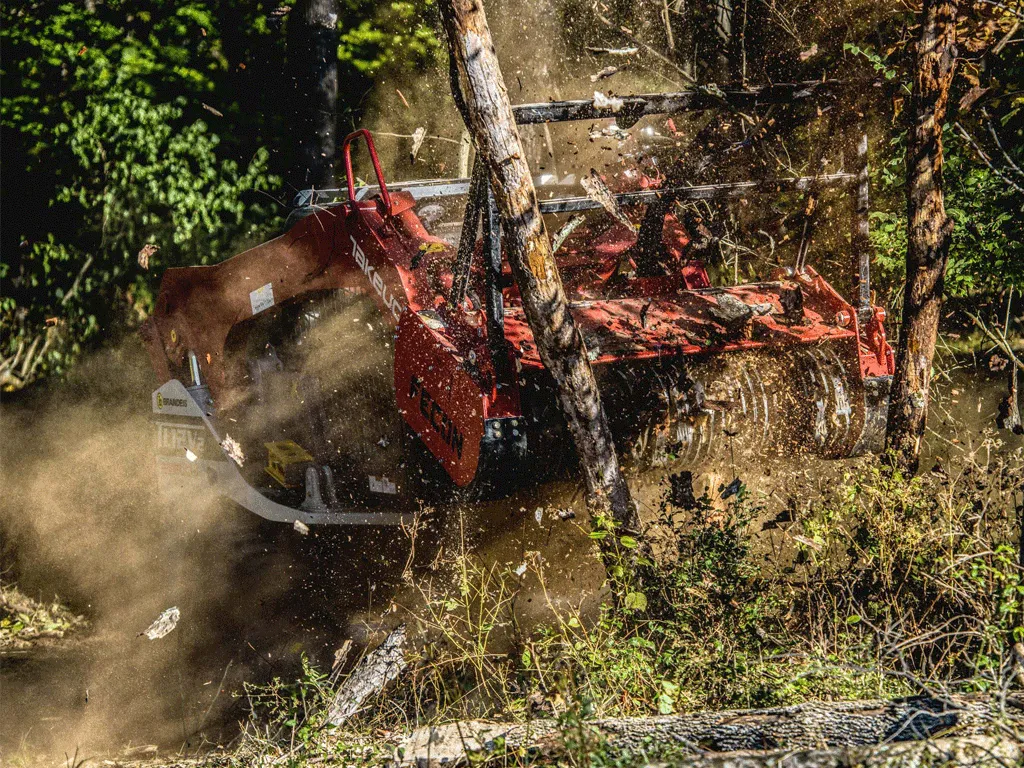

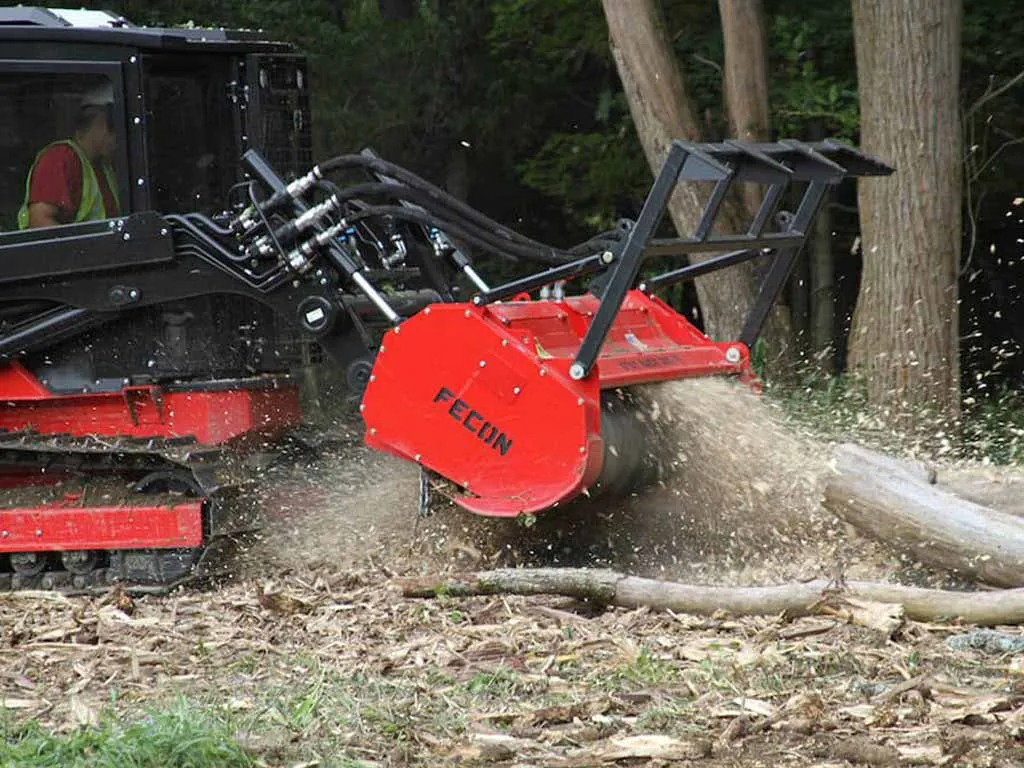

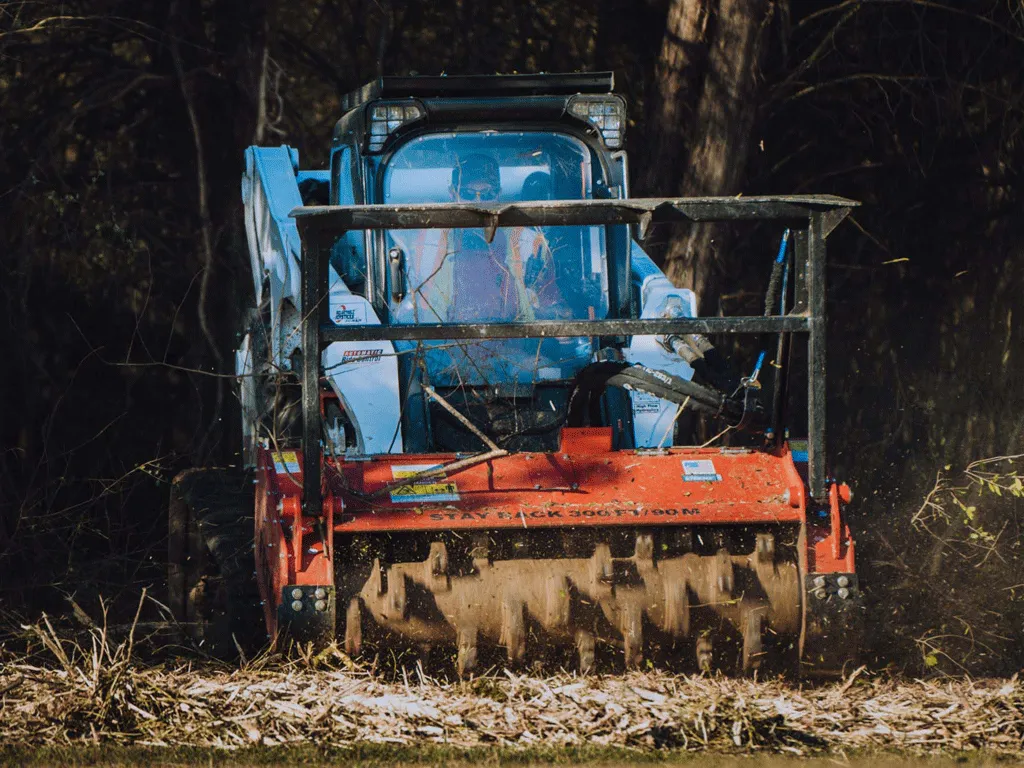

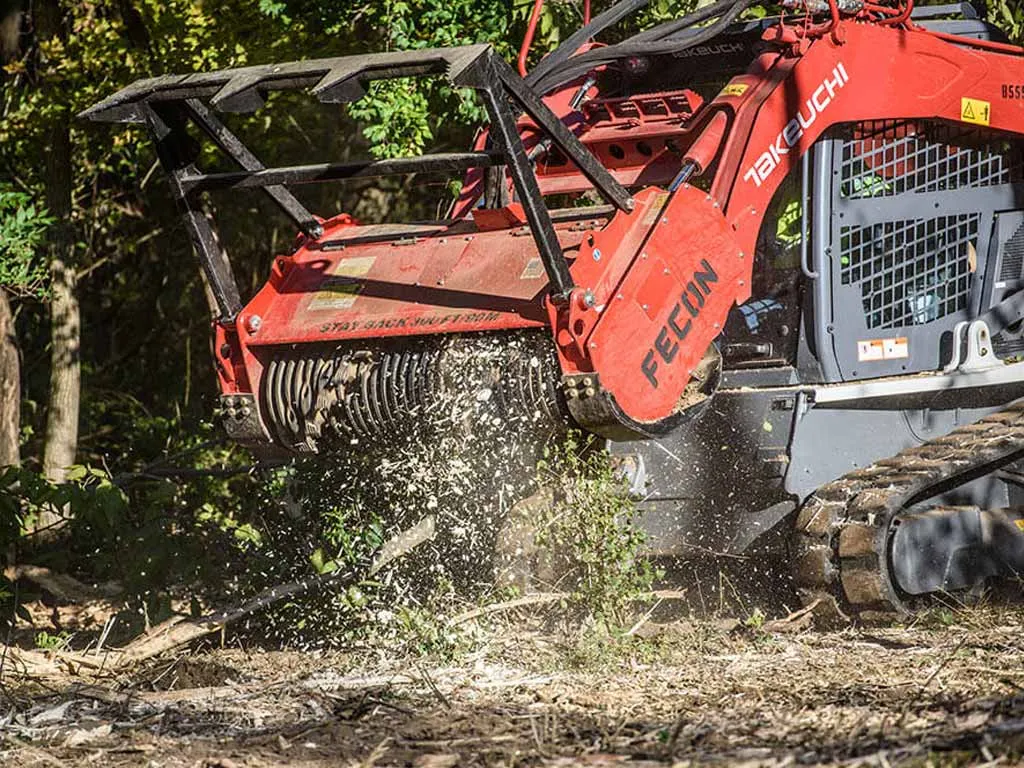

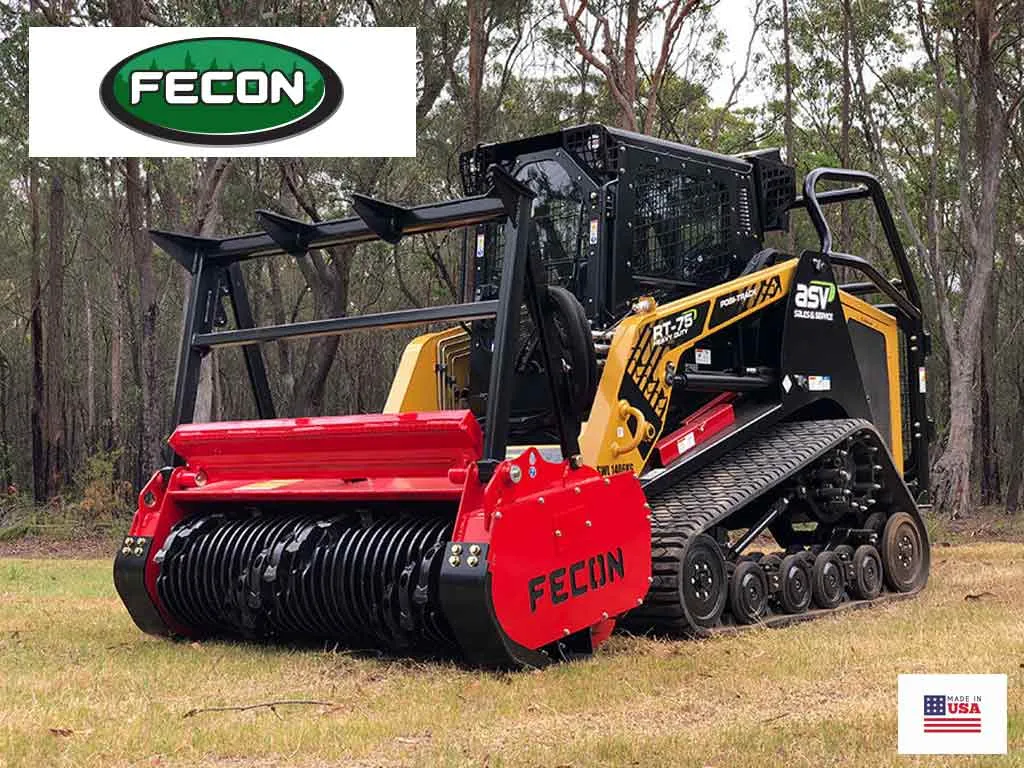

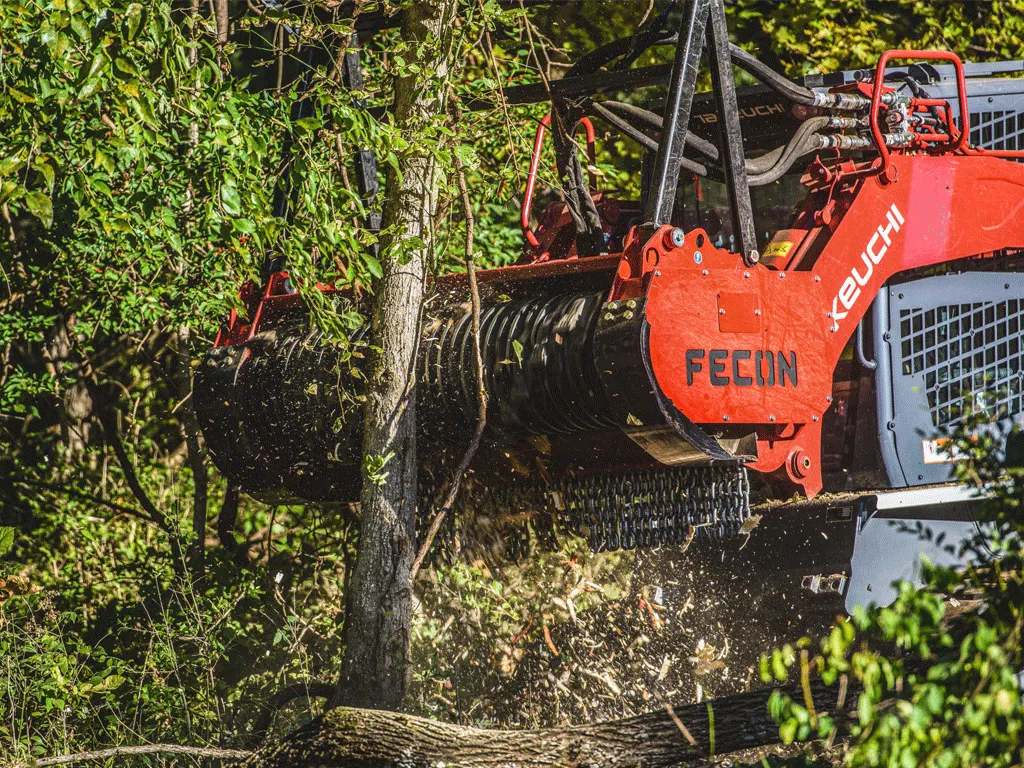

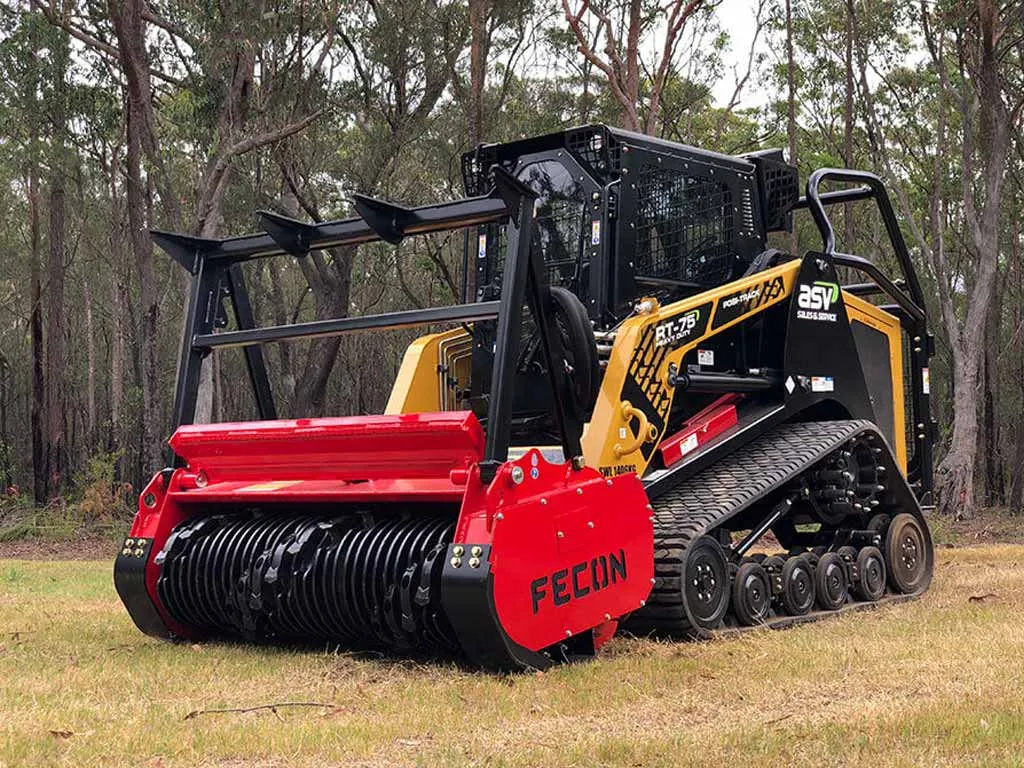

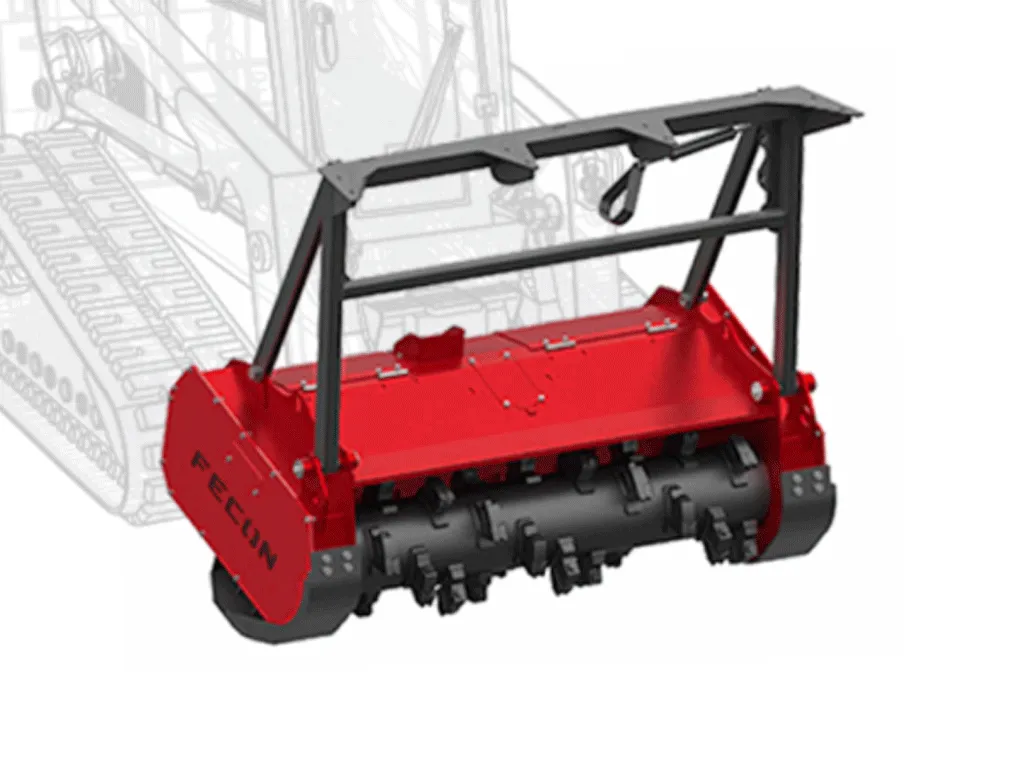

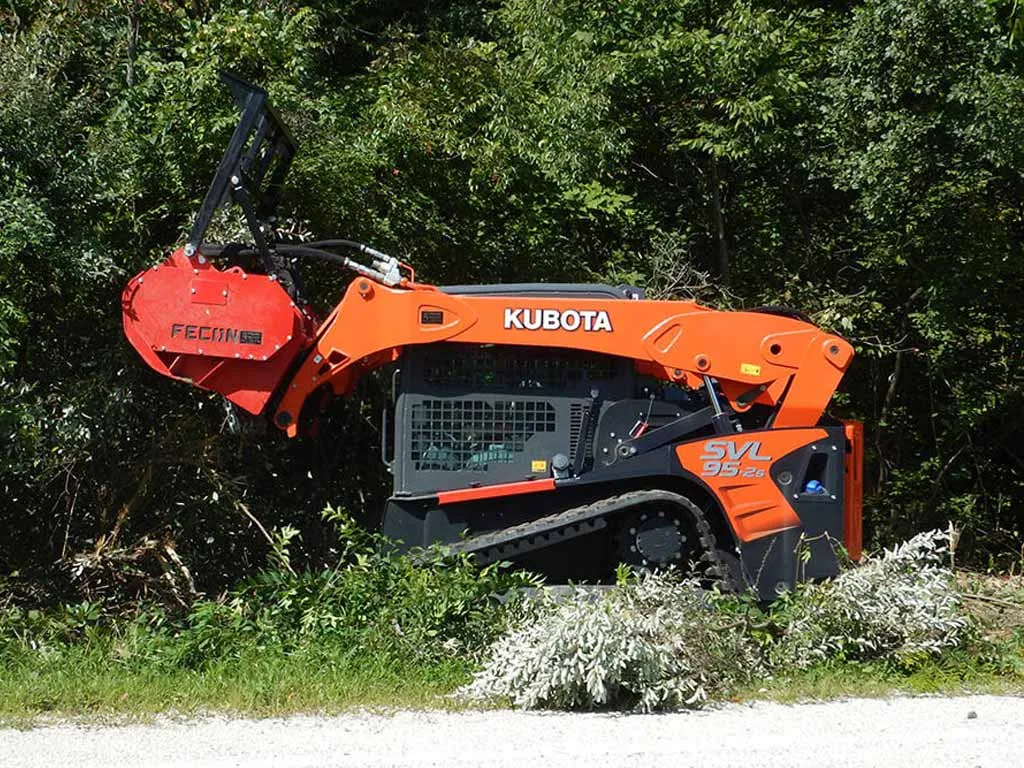

Fecon offers a full line of hydraulic Bull Hog mulcher attachments for your high flow skid steer, ideal for clearing brush, trees, and stumps down to ground level. Quickly mulch standing trees 4-6″ in diameter (depending on horsepower) and intermittently process 6-8″ trees.
STANDARD CONFIGRATION

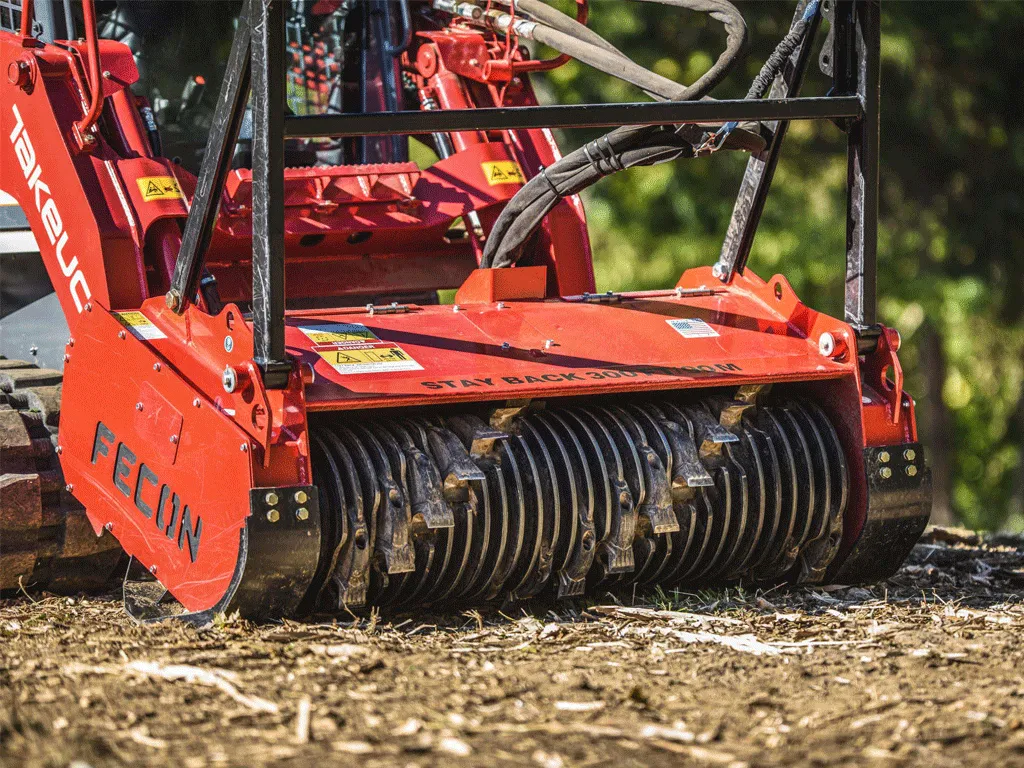

- FGT rotor with double carbide tools
- Variable displacement 107cc hydraulic motor
- Efficiently mulch up to 8" material
- Adjustable pin-on push bar with serrated ears for directing material
- Replaceable bolt-on skid shoes made of AR400 steel
- Hinged motor cover for improved serviceability
- Universal skid steer quick tach mounting
- Capable of 1-2" of ground engagement
- My inner Strenx certified
- Fecon standard warranty - 12 months / 1000 hours
FEATURES
- Customizable Rotor and Tooling Systems
- Bolt-on Skid Shoes
- Mulch up to 8" material with ease
- High strength material and welding process
- The most productive heads available
- Standard warranty 12 months / 1000 hours
EXPERIENCE THE DURABILITY OF THE HIGH FLOW
- Industry leading severe-duty body construction.
- Engineered and built to withstand all types of mulching conditions.
- Heavy steel materials and quality welding process provide strength and longevity.
EXPERIENCE THE PERFORMANCE OF THE HIGH FLOW
- Variable speed motor automatically adjusts to maximize rotor-speed & torque to changing material loads.
- For lighter material loads, higher RPM means more bites per second and finer material sizing. With heavier material, the Bull Hog delivers more rotor torque keeping the rotor turning when other heads may stall.
- Field tested and proven to be the most productive heads available.
EXPERIENCE THE VERSATILITY OF THE HIGH FLOW
- Available from 75-120HP, Bull Hog mulchers are designed for any machine and application.
- Available in 50″, 61″, and 72″ working widths.
- With 2 rotor systems and a variety of tool options, Bull Hogs can be configured for regional or specific job site conditions
VALUE OF FUSION
INCREASED PERFORMANCE AND PRODUCTIVITY
- Mulcher is always optimized to your carrier output
- Truly Plug n Play - Ready to mulch from the factory
- You can tailor your mulcher to your specific application
- Scalable technology for continued product evolution
VIDEOS
SPECS
| MODEL | BH62SS | BH74SS | BH85SS |
|---|---|---|---|
| WORKING WIDTH | 50" / 1270mm | 61" / 1549mm | 72" / 1829mm |
| OVERALL WIDTH | 65” / 1651mm | 76" / 1930mm | 87" / 2210mm |
| WEIGHT (LBS/KG) | 2450lbs / 1111kg | 2790lbs / 1266kg | 3140lbs / 1424kg |
| FLOW RANGE (GPM) | 30 - 50 | 30 - 50 | 30 - 50 |
| FLOW RANGE (LPH) | 114 - 190 | 114 - 190 | 114 - 190 |
| MAX PRESSURE (PSI) | 6000 | 6000 | 6000 |
| MAX HORSEPOWER | 132 | 132 | 132 |
| TOOLS PER STANDARD ROTOR | 24 | 30 | 36 |
| TOOLS PER DCR ROTOR | 20 | 24 | 28 |
| ROTOR DIAMETER | 20" / 500mm | 20" / 500mm | 20" / 500mm |
| ROTOR SPEED (RPM) | 2000 | 2000 | 2000 |
| ROTOR BEARING SIZE (MM) | ST65 | ST65 | ST65 |
| MOTOR(S) | 1 x 107V | 1 x 107V | 1 x 107V |
