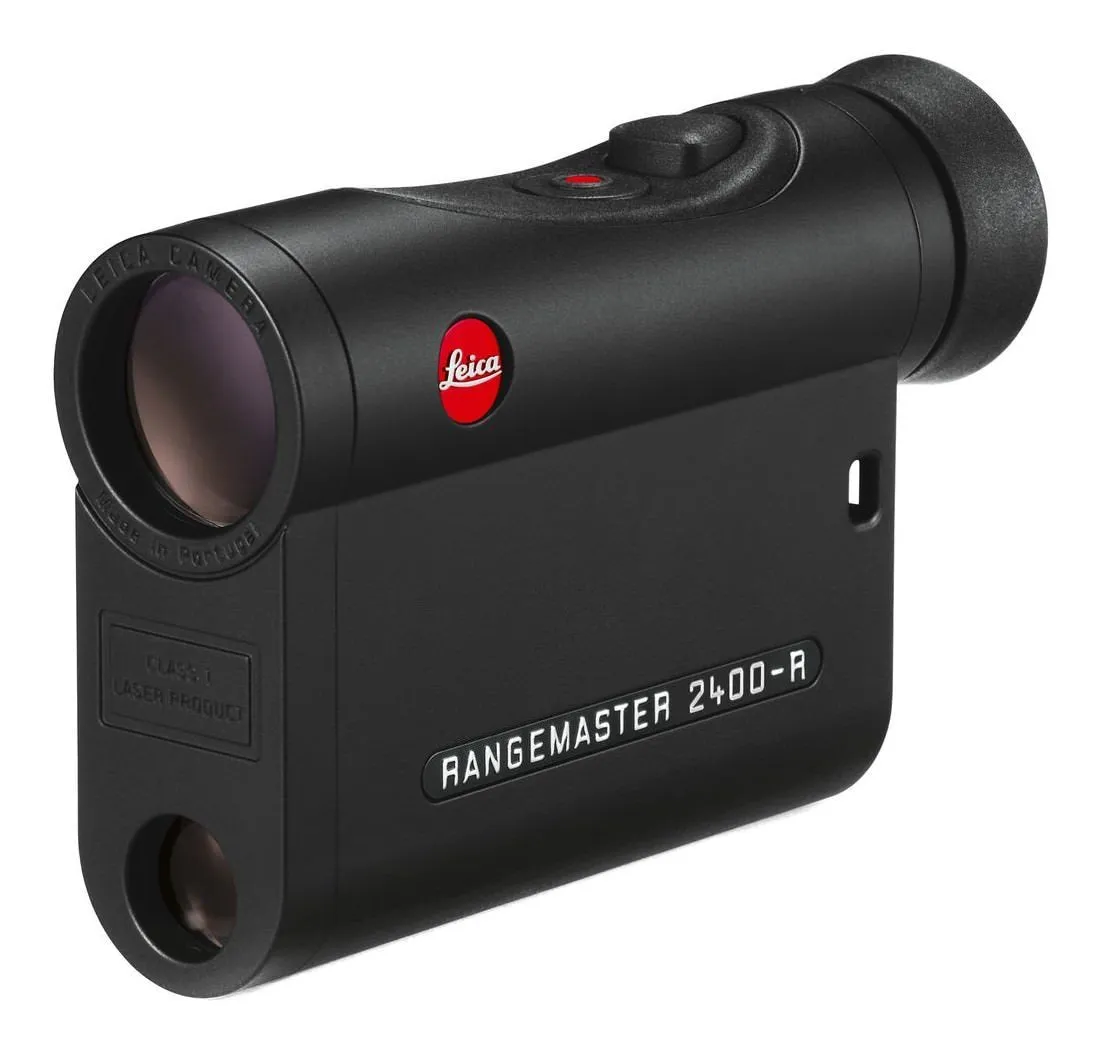

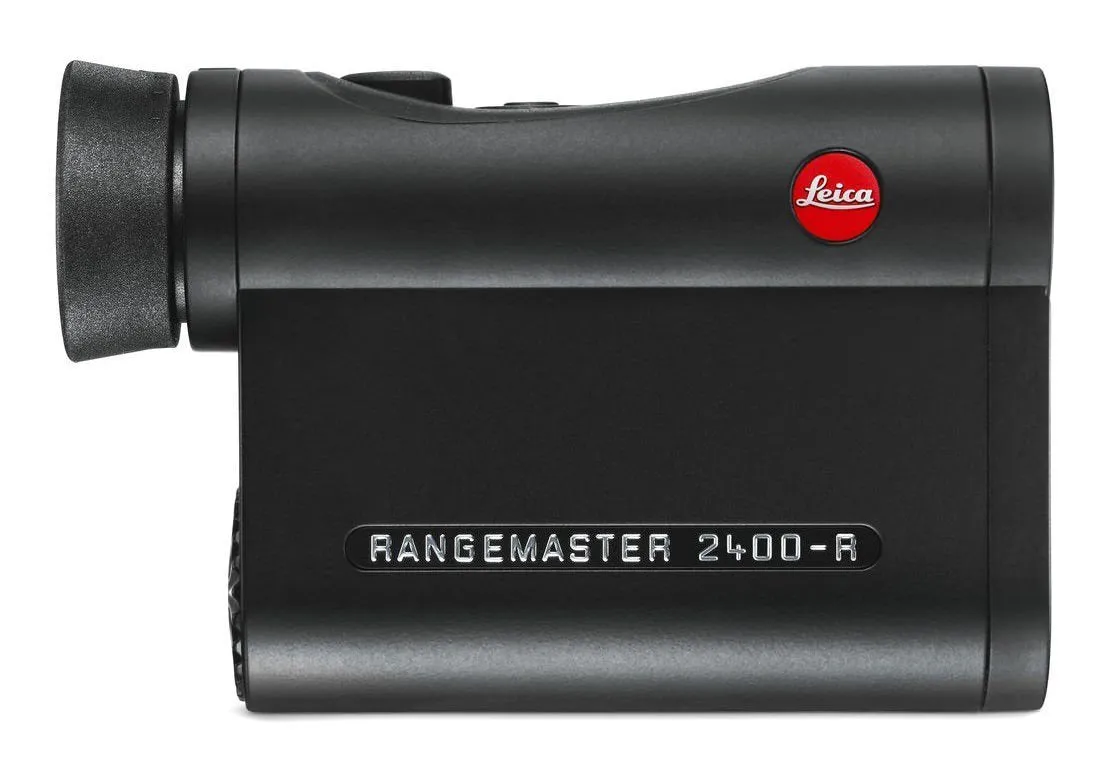

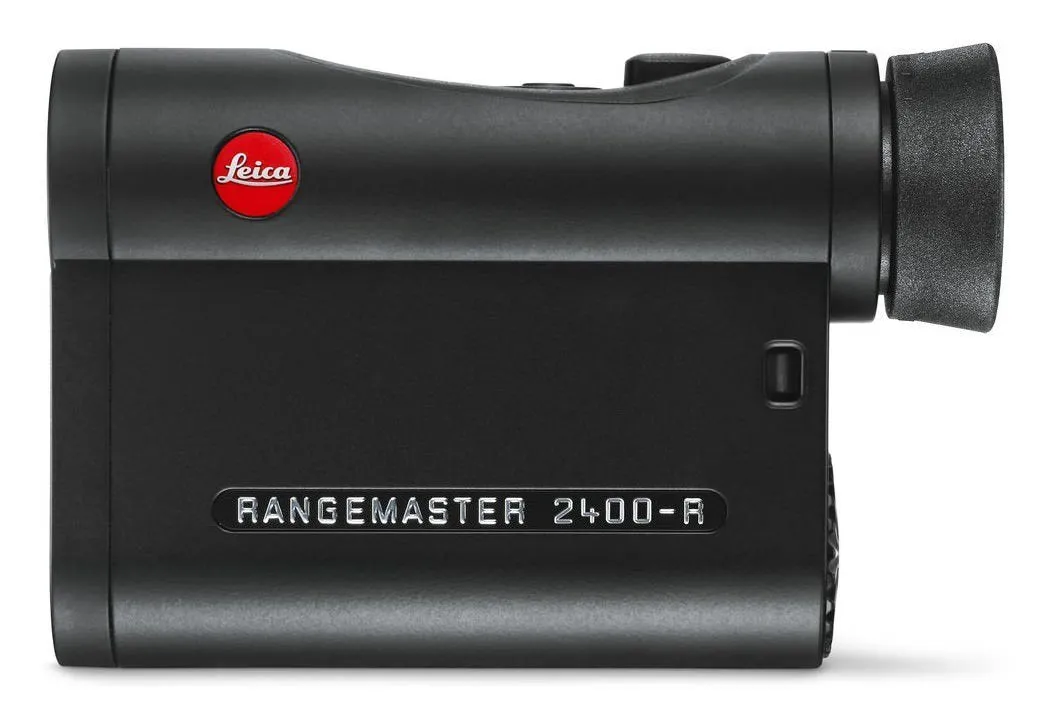

The new Leica Rangemaster CRF 2400-R allows distance determination of up to 2,400 yards (2,200 metres). It determines precisely both the linear distance and the equivalent horizontal range. In addition, the wide field of view allows fast target identification even at long distances. It also offers a new LED display for even better readability. At the same time, the CRF 2400-R features intuitive handling and is perfect for anyone attaching great importance to reliable measuring results in difficult terrain.

The LED display adjusts itself automatically to the ambient light and ensures even more precise as well as faster readability. Another remarkable feature is the extremely fast scan mode, which scans the environment and the relevant targets every 0.3 seconds and displays the required measuring results accurately. Up to a measuring distance of 200 yards (200 metres) the Leica Rangemaster CRF 2400-R provides the measuring results in decimal figures, enabling even more precise distance measurement.

As its predecessor model Leica Rangemaster CRF 1600-R, the new Leica Rangemaster CRF 2400-R determines the equivalent horizontal range (EHR) relevant for hunting up to a distance of 1,200 yards (1,100 metres) when required. With this feature the Rangemaster 2400-R provides the practical angle-compensated distance, which is essential for an accurate long-distance shot. This makes the Leica Rangemaster CRF 2400-R a true all-rounder and provides hunters and long-range shooters with all crucial data.

In only 0.3 seconds the Rangemaster calculates all the important parameters with utmost precision. Thanks to its compact form it fits easily into any pocket – weighing no more than 185 grams. The outstanding optics with a 7x magnification ensures the best image brightness and a wide field of view.

KEY FEATURES

- Ideal entry-level model with output of linear, horizontal range (EHR) of 10 m to 1,100 m / 1,200 yds
- Distance determination of up to 2,200 m / 2,400 yds
- Excellent readability of LED display with automatic brightness control
- Brilliant, clear image, crisp details even at dusk
- Weighs only 180 grams and is extremely compact

SPECIFICATIONS

Magnification: 7x
Front Lens Diameter: 24 mm
Exit Pupil: 3.4 mm
Twilight Factor: 13
Field of View at 1,000 yds / 1,000 m: 347 ft / 115 m
Eye-Relief: 15 mm
Objective Angle of View: 7 x 6.5°
Diopter Compensation: ± 3.5 diopters
Range: 10 yds to 2,400 yds / 10 m to 2,200 m
Equivalent Horizontal Range (EHR): 874 yds / 800 m
Measuring Accuracy to 400 yds / 366 m: ± 1 yd/m to 800 yds / 732 m ± 2 yds/m over 800 yds / 732 m approx. ± 0.5 %
Temperature (function): –4 up to 131 °F / –20 up to 55 °C
Read-Outs: Precise LED display with decimals, easily legible in any light
Eyepieces for Glasses: Yes
Eyecups: Turn down rubber eye-cups
Prism System: Roof prism with phase correction coating P40
Coating: AquaDura® lens coating
Laser: Eye-safe invisible laser according to EN and FDA class1
Laser Beam Divergence: ~0.5 x 2.5 mrad
Measuring Time: Maximum ~0.3 s
Measuring Mode: Scanning mode, single measurement
MicroSD Slot: Yes
Battery: 1 x 3 V / Lithium-type C2R
Battery Lifetime: ~3,000 measurements at 20 °C / 68 °F
Water-Tightness: Watertight to a depth of 3.2 ft / 1 m
Housing: Carbon fiber-reinforced plastic material
Dimensions: 4.5 x 2.25 x 1.25 in / 113 x 75 x 34 mm (W x H x D)
Weight: 6.5 oz / 185 g including battery
Includes: Cordura case, carrying cord, and battery
MPN: 40546
