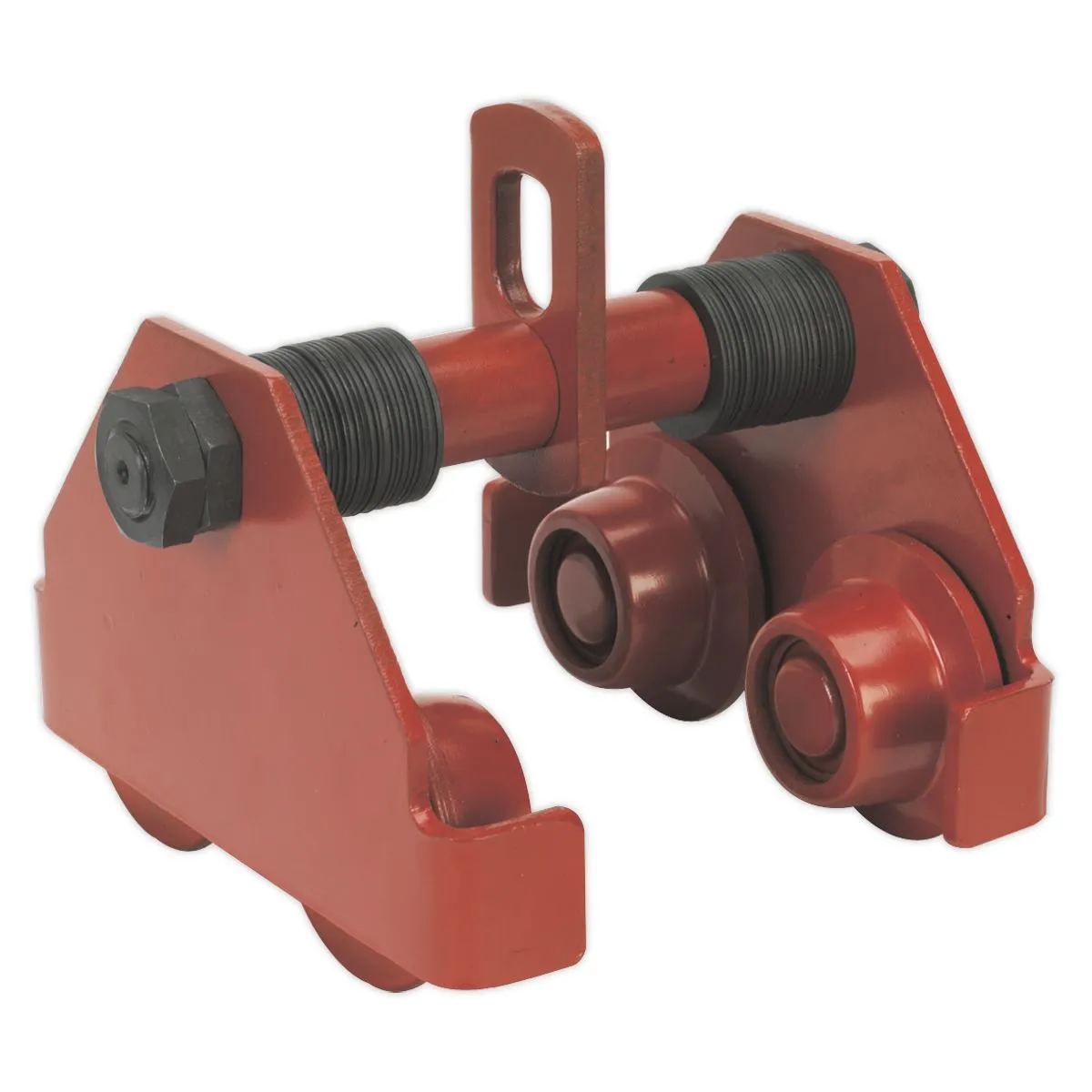

Sealey Plain Trolley 0.5 Tonne
Suitable for use with our lever hoists or chain blocks.
Designed for mounting onto an I-beam or RSJ to allow load to be manoeuvred sideways.
Incorporates wheel guards to prevent contact with other trolleys mounted on same load bearer.
Specification:
- Model No PT500
- Brand: Sealey
- Nett Weight: 7kg
- Capacity: 500kg
- Test Load: 750kg
- Track Width Adjustable Range: 64-140mm
- Minimum Curve Radius: 800mm
- A: 212mm
- B: 115mm
- C: 115mm
- D: 90mm
- E: 115mm
- Weight: 7kg
- Minimum Standard I-Beam Dimensions (D x W x Web): 125 x 75 x 5.5mm
- Maximum Distance Between Spans: 3000mm
- Maximum Standard I-Beam Dimensions (D x W x Web): 250 x 125 x 7.5mm
- Maximum Distance Between Spans: 8000mm
- Refer to catalogue for diagram.:
Catalogue Page: Page 324
