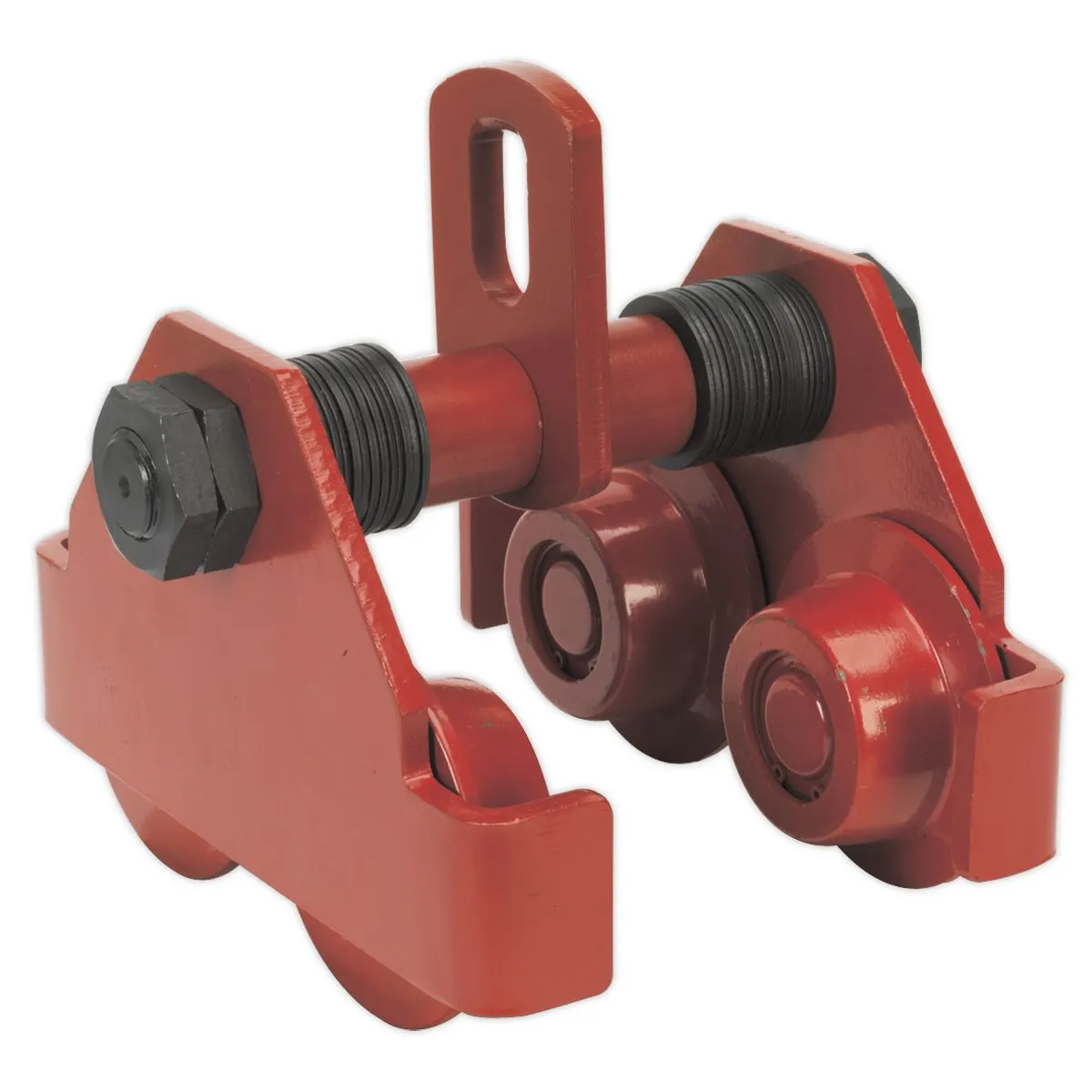

Sealey Plain Trolley 2 Tonne
Suitable for use with our lever hoists or chain blocks.
Designed for mounting onto an I-beam or RSJ to allow load to be manoeuvred sideways.
Incorporates wheel guards to prevent contact with other trolleys mounted on same load bearer.
Specification:
- Model No PT2000
- Brand: Sealey
- Nett Weight: 20kg
- Capacity: 2000kg
- Test Load: 3000kg
- Track Width Adjustable Range: 76-165mm
- Minimum Curve Radius: 1300mm
- A: 305mm
- B: 150mm
- C: 150mm
- D: 130mm
- E: 152mm
- Weight: 20kg
- Minimum Standard I-Beam Dimensions (D x W x Web): 180 x 100 x 6mm
- Maximum Distance Between Spans: 3000mm
- Maximum Standard I-Beam Dimensions (D x W x Web): 350 x 150 x 9mm
- Maximum Distance Between Spans: 9000mm
- Refer to catalogue for diagram:
Catalogue Page: Page 324
Downloadable Files:
- Instructions:
- Parts Diagram:
