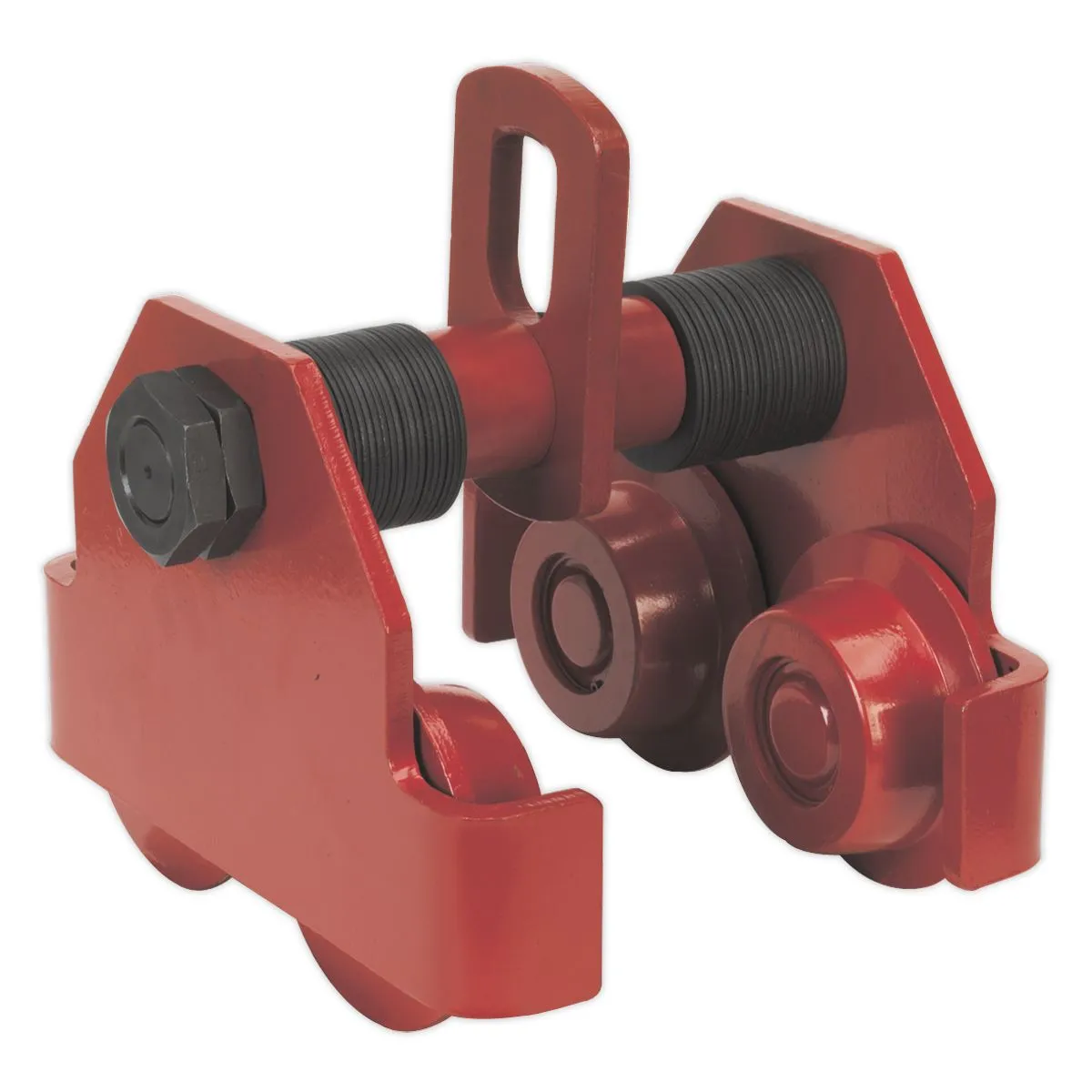

Sealey Plain Trolley 3 Tonne
Suitable for use with our lever hoists or chain blocks.
Designed for mounting onto an I-beam or RSJ to allow load to be manoeuvred sideways.
Incorporates wheel guards to prevent contact with other trolleys mounted on same load bearer.
Specification:
- Model No PT3000
- Brand: Sealey
- Nett Weight: 31kg
- Capacity: 3000kg
- Test Load: 4500kg
- Track Width Adjustable Ranges: 76-203mm
- Minimum Curve Radius: 1500mm
- A: 344mm
- B: 172mm
- C: 172mm
- D: 145mm
- E: 186mm
- Weight: 31kg
- Minimum Standard I-Beam Dimensions (D x W x Web): 200 x 100 x 7mm
- Maximum Distance Between Spans: 2700mm
- Maximum Standard I-Beam Dimensions (D x W x Web): 850 x 150 x 9mm
- Maximum Distance Between Spans: 4500mm
- Refer to catalogue for diagram:
Catalogue Page: Page 324
Downloadable Files:
- Instructions:
- Parts Diagram:
