Seasure 2 Hole Transom Pintle - 8mm - 18.13

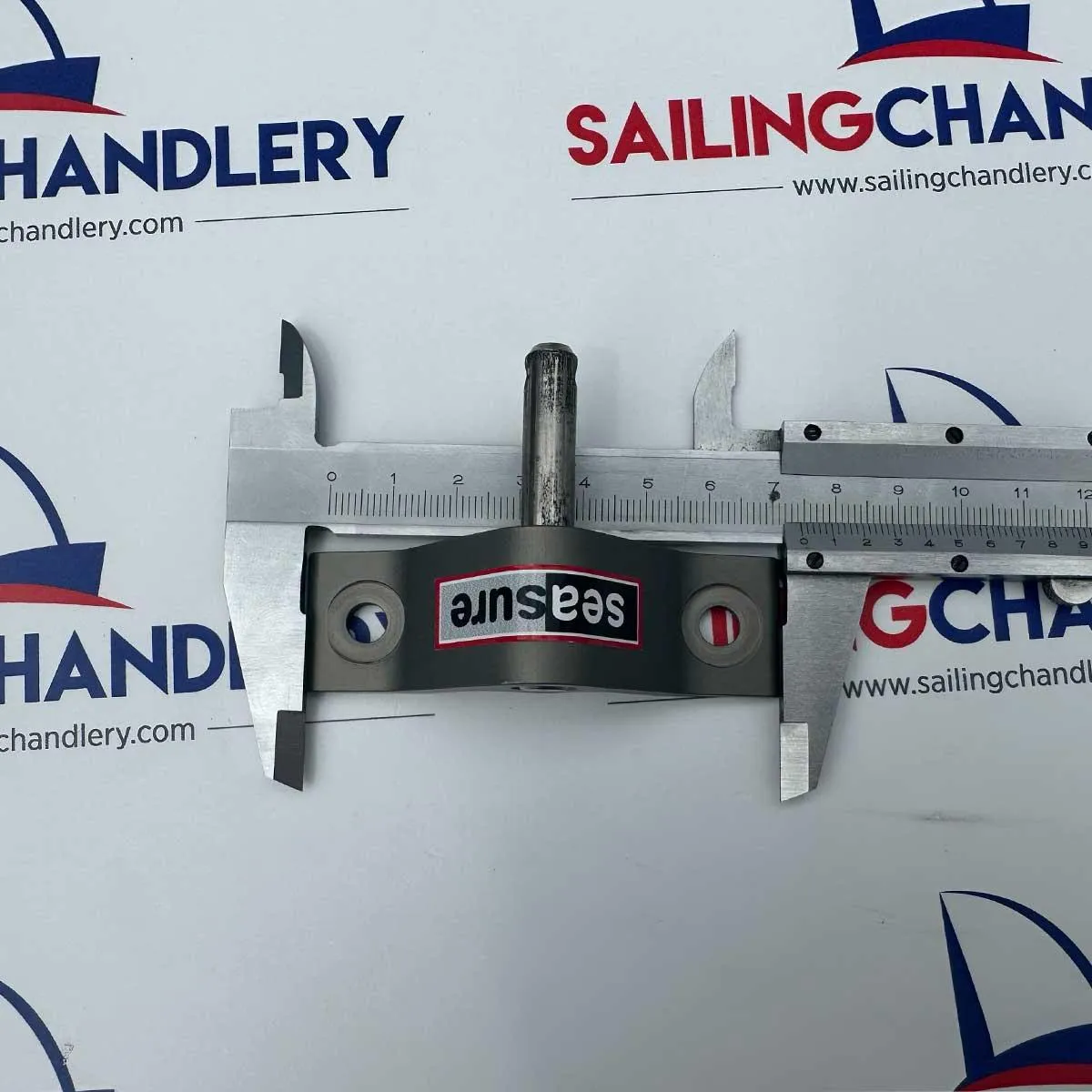

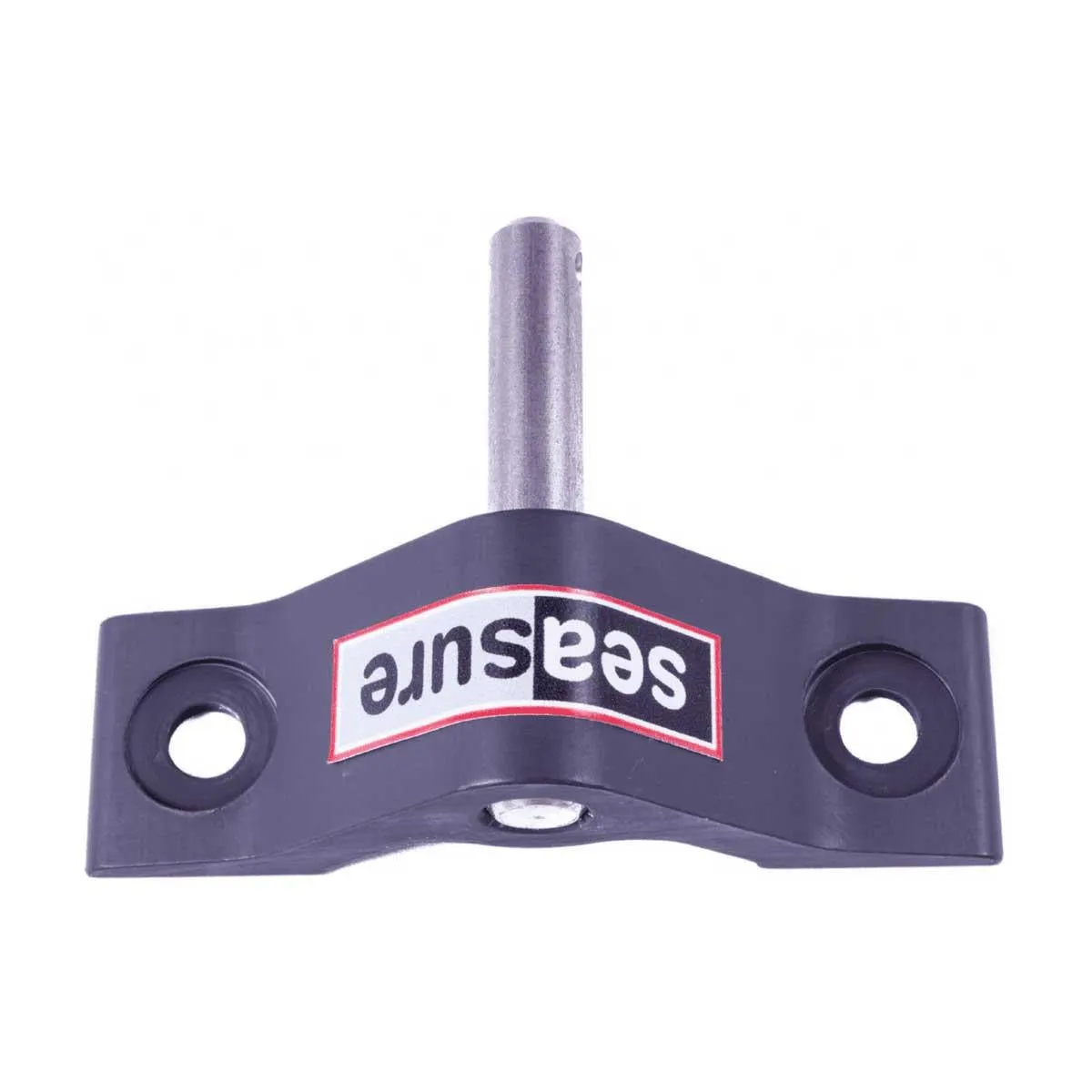

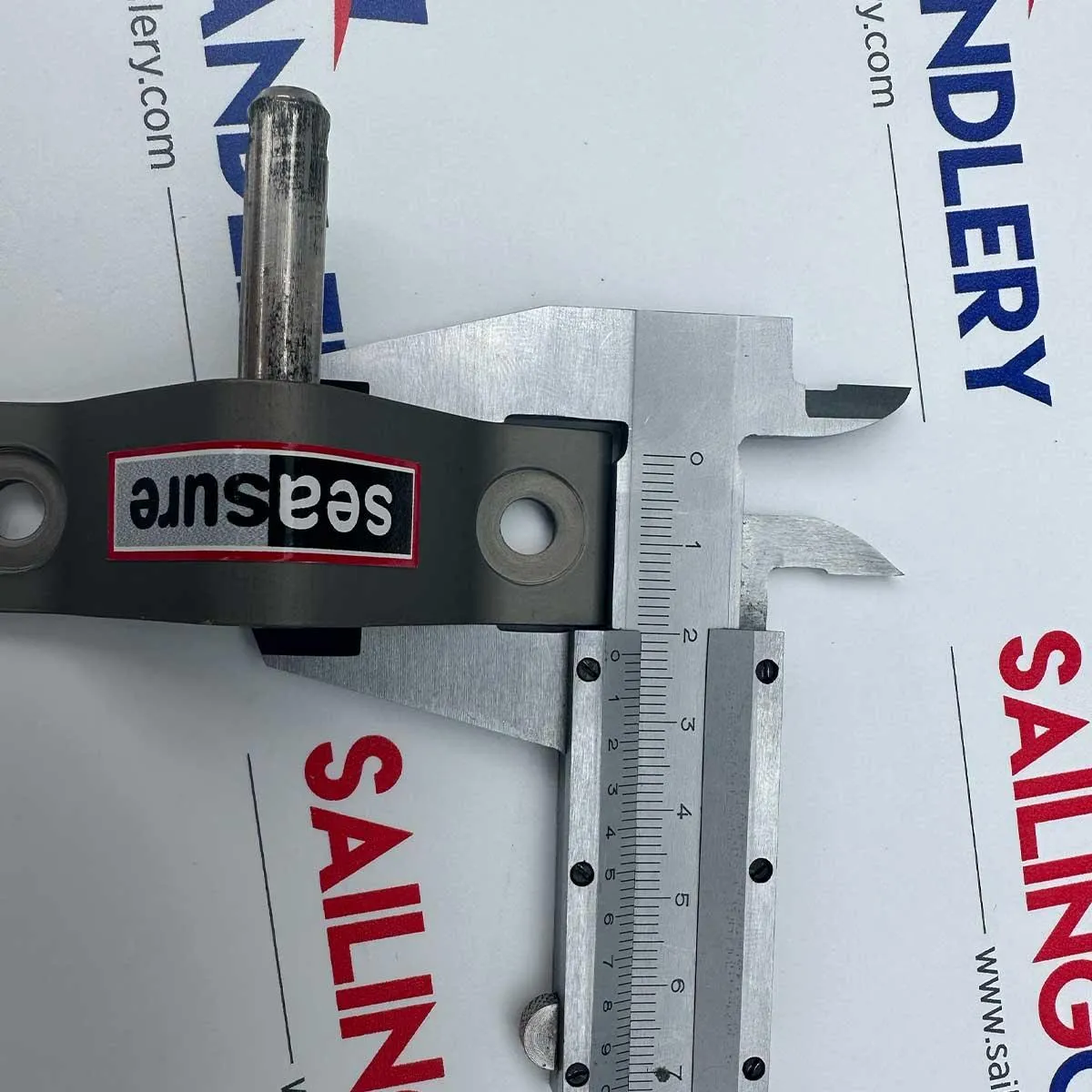

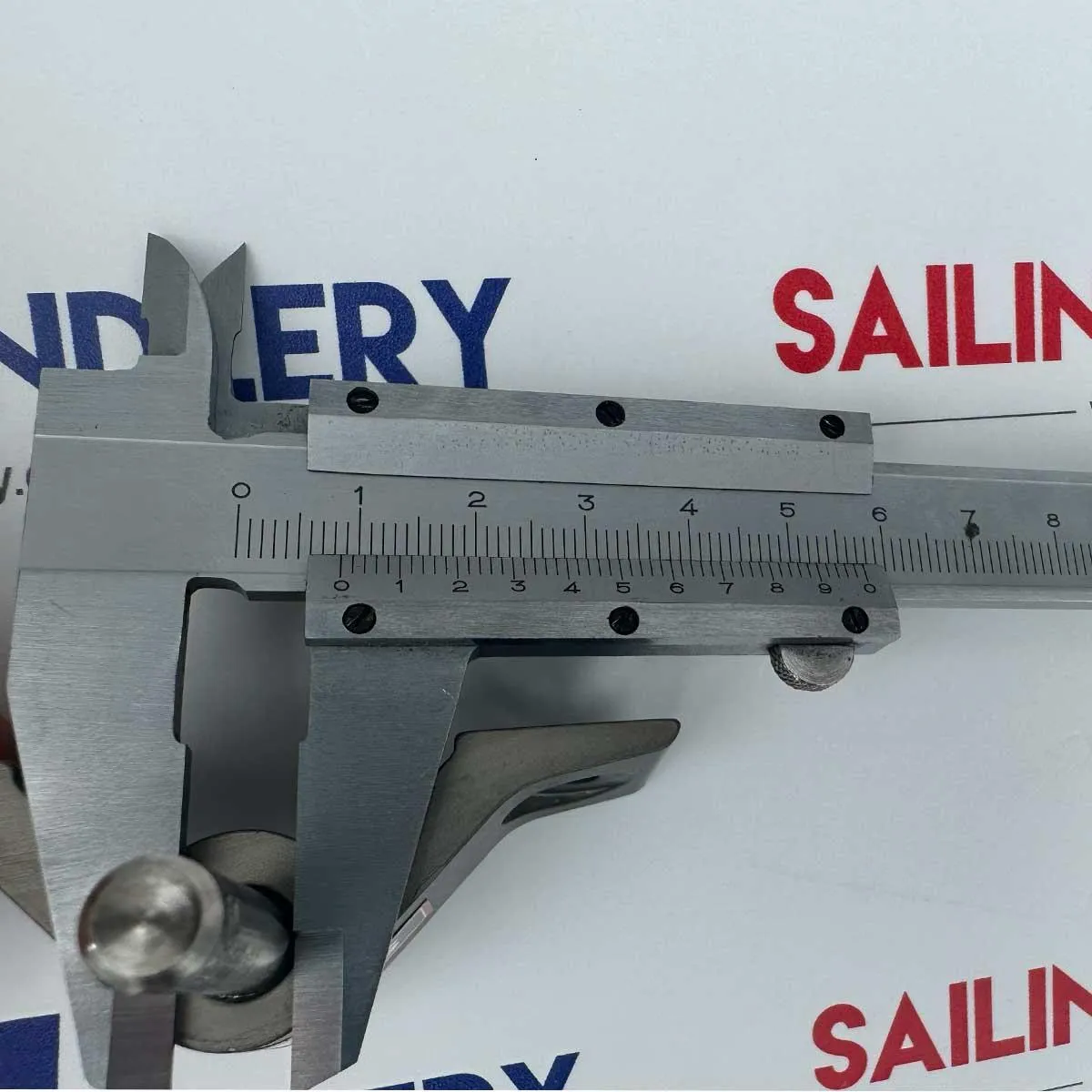

The Seasure 2 Hole transom mounted pintle is typically used at the top of the transom on lighter weight dinghies. The fitting has 2 6mm countersunk fixing holes for attaching to the back of the boat and the pintle pin is 8mm diameter in size.

The pin is made from 316 stainless steel and is made to fit snugly with the Seasure gudgeon ranges. The pintle pin has a cross hole drilled so that an r clip or split ring can be used to secure the rudder on to the transom fittings.

Packing pieces are available to increase the distance that the fitting sits off the back of the boat. The part number for this is 18.52
