FEATURES
• Fully Multi Coated Reaches 85% Light Transmission Sharp Clear Image
• 4 inch Long Eye Relief With Wide Field of View & Edge-to-Edge Image
• Etched Glass MPN-1 MIL Reticle, Side Focus Minimal from 10 Yards
• 1/10 MIL Low Profile Adjustment w Turret Lock & Re-Zero Feature Total 15MIL Range
SPECIFICATIONS

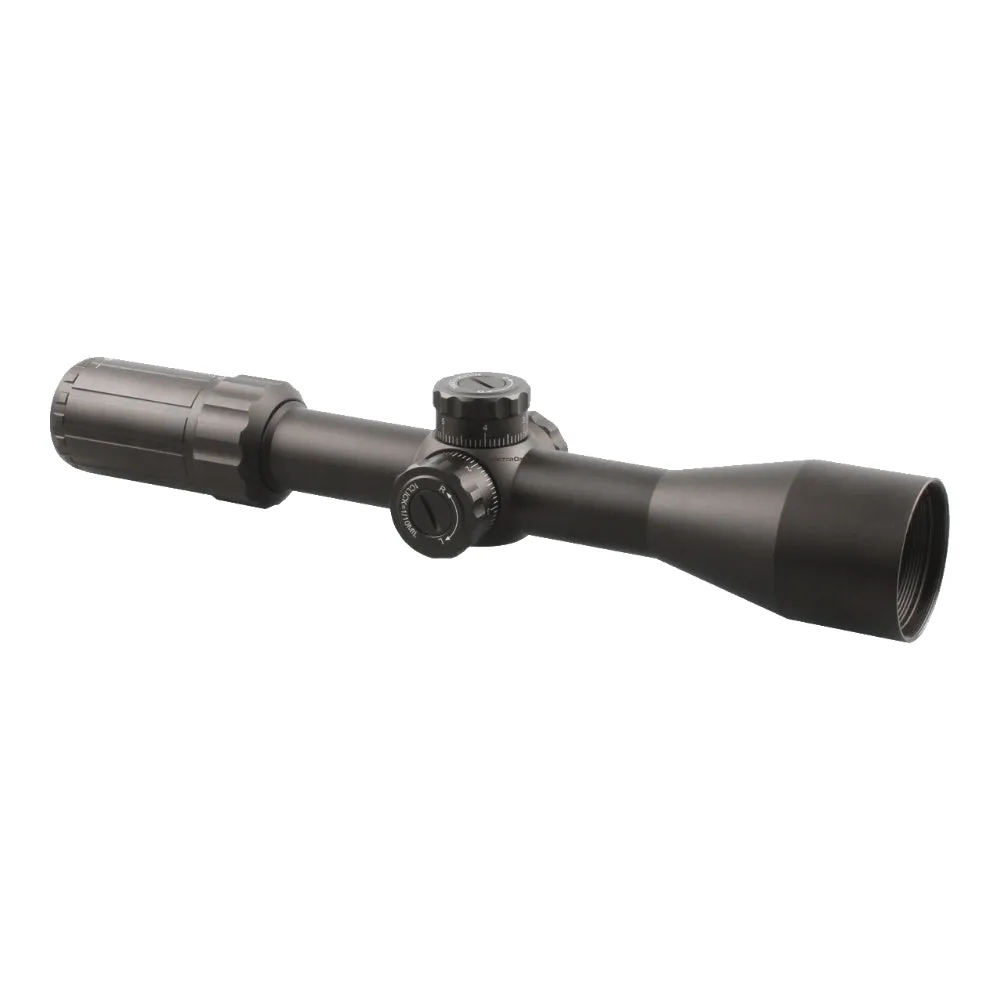

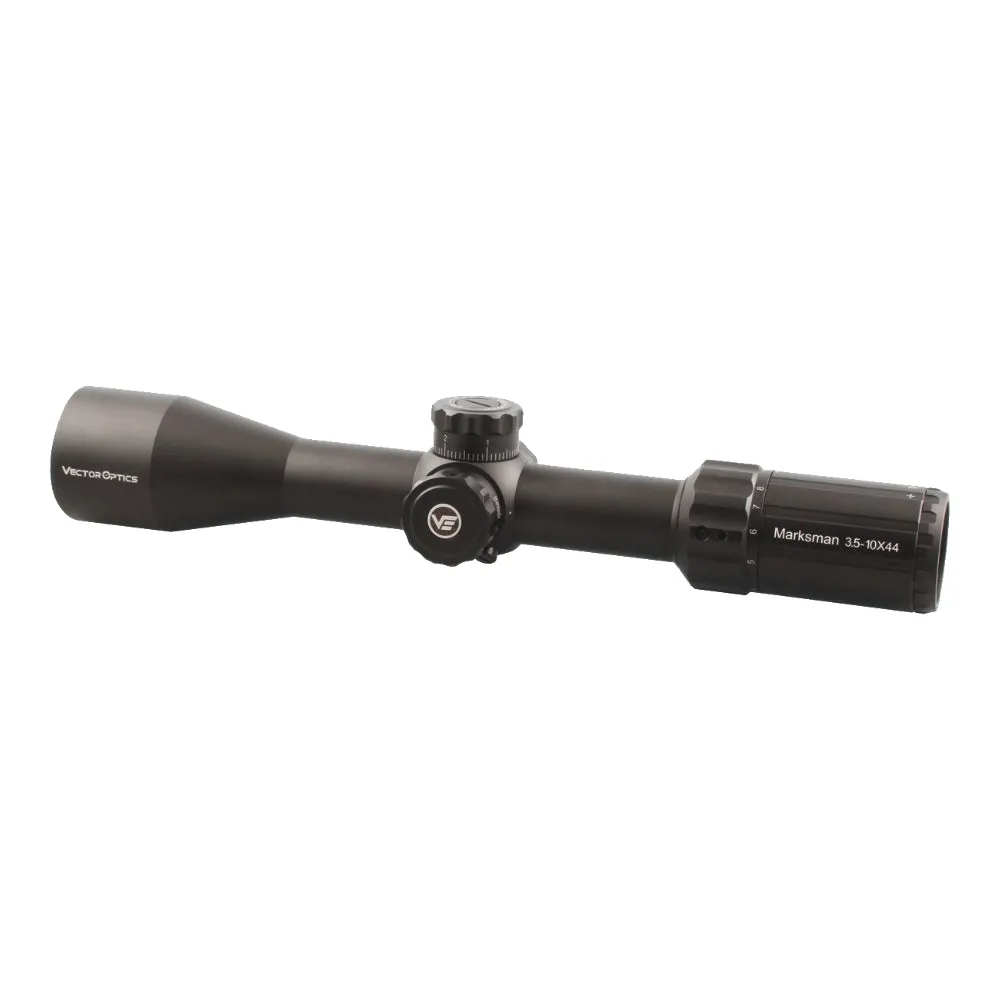

- Magnification: 3.5-10x
- Objective Lens Dia.: 44mm
- Ocular Lens Dia.: 35mm
- Tube Dia.: 30mm monotube
- Exit Pupil: 12.6-4.4mm
- Field of View: 6.3-2.1°
- Eye Relief: 105-100mm / 4.13-3.93 inch
- Optics Coating: Fully-multi coated
- Reticle: Etched Glass MPN-1 Reticle
- Weight: 665g / 23.5oz
- Length: 325mm / 12.8 inch
- Click Value: 1/10 MIL
- Adjustment Range: 18 MIL
- Side Focus: 10 yards to infinite
- Finish: Black matte
- Illumination: N/A
- Distance between objective lens part and middle turret: 49mm (1.9 inch)
- Length of middle turret part: 39mm (1.5 inch)
- Distance between middle turret part to power ring: 57mm (2.2 inch)
- Side focus: marked 10, 15, 25, 50, 100, 200, 500 yards to infinite
- Shock proof (1000g), water proof and fog proof (nitrogen purged)

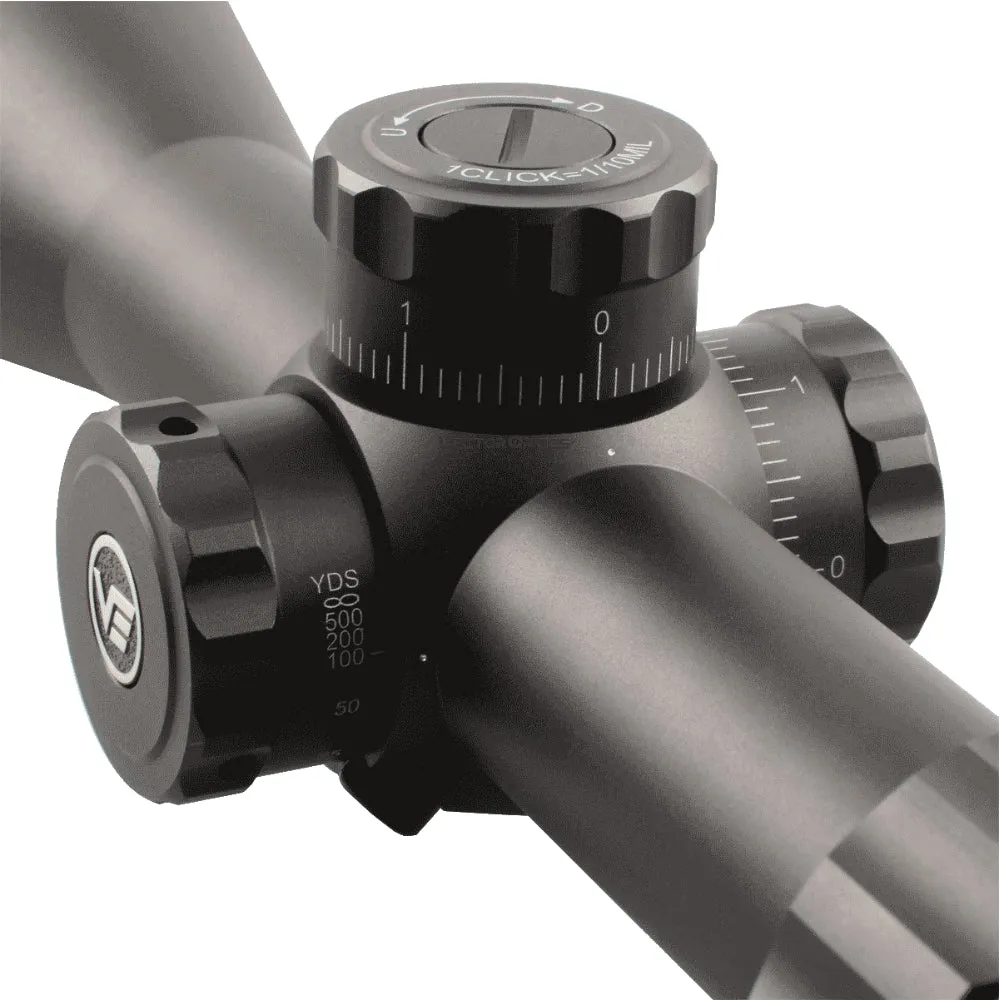

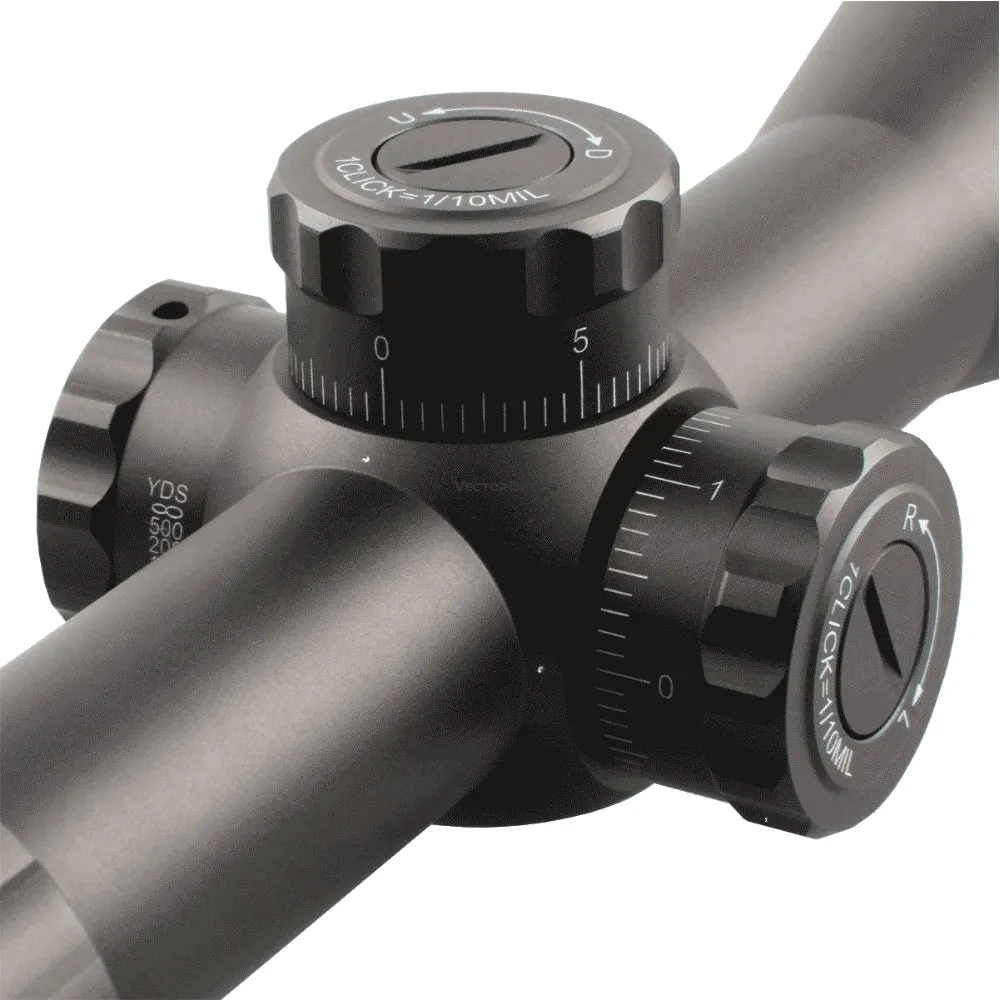

- Direct finger windage and elevation adjustments with turret lock feature
- Diopter adjustment at ocular lens (diopter compensation 2 to -2)
